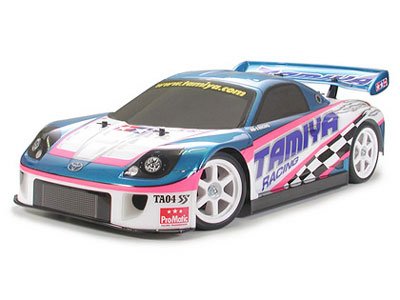

Tamiya 58290 - 1/10 RC Toyota MR-S Racing (TA04-SS)  [58290]

About the Toyota MR-S Racing

The Toyota MR-S made its first on the market in October 99 as a Mid Ship 2-Seat Sports Vehicle. Using its agility and high traction abilities, this well transformed device has excelled within the Japanese GT Championship. Tamiya is proud to present the R/C reproduction of this difficult top racer Toyota MR-S featuring projecting front side and back fenders and oversized back wing.
Quick Wheelbase TA04-SS Chassis
The TA04-SS framework is developed from TA04-S framework and features a shortened wheel base with specifically designed suspension system arms. The wheel base is reduced 10mm to give sharper turn ability. The agility of TA04-SS offers you true R/C excitement.

Specs

• Chassis Type: TA04-SS
• Scale: 1/10
• General Length: 404mm
• General Width: 189mm
• General Height: 117mm
• Minimal Clearance: 8mm
• Body weight Fully Equipped: 1,630g (including TP-S3003 servo, CPR device, RC2400SP battery pack)
• Tread (f/r): 162/162mm
• Chassis Material: top deck/Polycarbonate lower deck/ABS resin
• Chassis Type: Resin kind double deck
• Steering Tie Rods: split in three sections
• Suspension (front and rear): dual wishbone
• Caster Angle (f/r): 10deg/2deg
• Toe Angle (f/r): 0deg(variable)/2deg
• Dampers (f/r): CVA Mini II dampers
• Drivetrain: belt driven midship full-time 4WD
• Diff gear system (f/r): 3 bevel differential
• Gear Ratio: 7.08:1(kit standard)
• Ball Bearings: complete ball bearings (24 in every)
• Speed Controller: electronic rate controller
• Tire width/diameter F/R: 27mm/65mm
• Tread pattern (f/r): rushing sleek tires


Needed Products (Available Separately)

• 540 engine
• R/C device: Adspec GT-I or FET 2-channel R/C device with electronic speed control
• Battery: Tamiya 7.2V Racing Pack or 7.2V Advance Pack.
