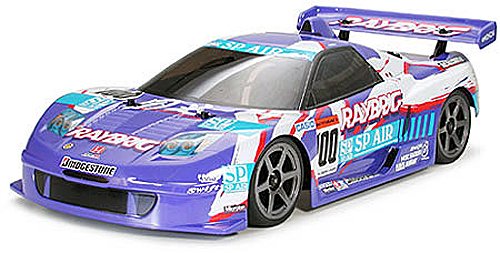

Tamiya 58297 - 1/10 RCC Raybrig NSX 2002 (TA04-R)  [58297]

The RAYBRIG NSX 2002 of Team Kunimitsu with MOONCRAFT is notorious for tearing up the track at Japan GT Championship (JGTC) scene. Through the 2nd competition in SUGO the equipment showcased a characteristic induction field fixed towards roof. The Raybrig of Team Kunimitsu with MOONCRAFT ended up being also understood because of its vivid azure and white coloring.

Towards model

The TA04-R Chassis Is Completely Prepared for starters Purpose Just: to Race.

Double-deck frame of framework features carbon reinforced resin lower deck and full carbon upper deck for increased durability. Chassis employs 2-belt 4WD with a complete pair of ball bearings also ball differential gears for maximum drive effectiveness. With a full array of option parts and suspension that may be fine-tuned, this R/C chassis stays real to pure racing. (motor not included)

Fundamental Specs

• Overall size: 420mm
• Overall width: 189mm
• Total height: 123mm
• Min. Clearance: 5mm
• Body weight completely equipped: 1,575g (dimension includes TP-S3003 servo, CPR Unit and RC2400SP Battery)
• Wheelbase: 257mm
• Tread F/R: both 166mm
• Chassis Material: Carbon/Carbon fiber strengthened nylon
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component Suspension System
• Front and Rear Double Wishbone
• Caster Angle-F/R: 6deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: 0 deg. adjustable/4deg
• Damper: F/R TRF Damper
• Transmission Type: Belt Mid-ship Full-time 4WD
• Gear Ratio: 5.69:1 (kit standard)
• Diff. gear system: F/R Ball Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks

Necessary Items (Sold Individually)

• Physical stature 540 motor
• R/C Unit:Adspec GT-I or FET 2-channel R/C product with electronic speed control
• Battery: Tamiya 7.2V Racing Pack
