Tamiya 58329 - 1/10 RC Calsonic Impul Z TB-02 Chassis  [58329]

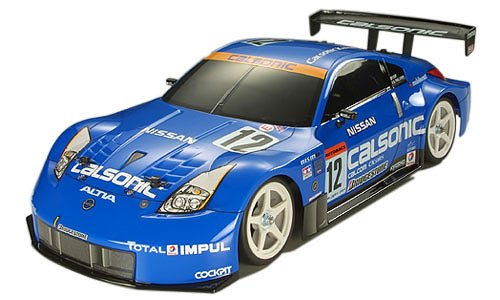

Looking To Be # 1 Tamiya introduces the 2004 Calsonic Impul Z towards the 1/10 scale R/C lineup. The sleek Japan GT Championship (JGTC) Impul Z body has been combined with fine tuned 4WD TB-02 chassis to bring you the greatest powerful touring car racer.

High End Handling Featuring perfect fat stability and low center of gravity, the TB-02 is fitted with a slim bathtub framework for superlative cornering performance. 4-wheel double wishbone suspension system guarantees excellent road holding performance, with complete oil dampers for smooth managing. Standard kit comes with racing features such as for instance full ball bearings, aluminum propeller shaft, front and rear ball differentials, turnbuckle shaft upper arm and 24mm racing slick tires.

Fundamental Requirements

• General size: 440mm
• General width: 189mm
• Overall height: 119mm
• Body weight Fully-Equipped: 1,564g
• Wheelbase: 259mm
• Type RS-540 motor included
• Transmission Type: Longitudinally mounted engine with shaft-driven 4WD
• Diff. gear system: Ball Diff (Front & back)
• Steering Tie Rod: 3 component
• Suspension: Double Wishbone (F&R)
• Damper: C.V.A. Super Mini Shock Device (F&R)
• Gear Ratio: 7.94:1
• Tire Width: 24mm (F&R)
• Tire Diameter: 64mm (F&R)
• Tread Pattern: Racing Slick (F&R)
• Speed Controller: Electronic Speed Controller (not included)

Necessary Products (Available Individually)

• R/C Unit: Adspec GT-I or 2-channel R/C system with ESC
• Battery: Tamiya 7.2V Racing Pack or comparable
