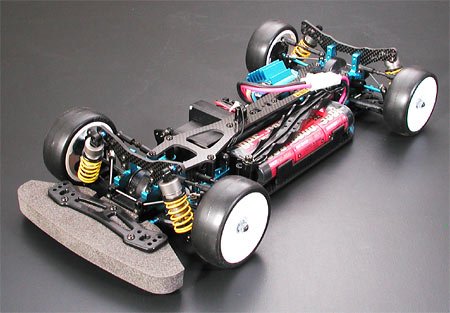

Presenting the fourth edition of the high performance TB Evolution R/C rushing automobile. The TB Evo IV happens to be developed centered on rushing performance of TB Evo III and motorist feedback, causing a chassis featuring the entire great things about the most recent R/C rushing technology including newly created aluminum bulkhead, a sealed bevel gear cover to protects gears from dirt and rocks on an outdoor circuit and a more durable bevel gear developed from a special carbon based product. The model can be built with 2.5mm dense reduced and 2mm dense upper carbon frames.
About the TB Evolution IV
- Newly designed aluminum bulkhead to firmly secure drive train and increase gear performance.
- A sealed bevel gear address protects gears from dirt and rocks on a backyard circuit.
- Features a far more durable bevel gear developed from a unique carbon based material.
- Aluminum propeller shaft happens to be created as a 3-piece shaft, reducing rate loss triggered by friction during framework roll.
- Suspension system has been totally upgraded for improved cornering with brand new lightweight and more compact suspension system supply, hub provider and front/rear upright.
- Increased damper attachment settings for effortless damper adjustment, allowing damper to suit your driving style.
- Kit includes medium narrow racing slick tires.
- Engine and body not included
The Reedy Touring vehicle Race winning TB Evolution IV is now available! The shaft driven 4WD TB Evolution racing framework just keeps enhancing, establishing new standards in the R/C world. According to information extracted from genuine competition performances by Tamiya's factory group, Tamiya Racing Factory (TRF), vital components have been redesigned to create you the best high end racing framework. The primary concept behind the TB Evolution IV would be to enhance drive train efficiency and reduce weight round the suspension system. Drive train effectiveness is crucial for competition, particularly in stock course and 19 turn spec categories. The result is a fine-tuned high-performance chassis that's the ultimate tool for almost any expert driver.
Solid Chassis Design For solid Chassis Design, both 2.5mm lower deck and 2.0mm upper deck were created from Carbon Fiber Reinforced Polymer (CFRP). To help expand reinforce the framework frame the TB Evo IV also includes aluminum front side and back bulkheads, allowing you to get the complete advantages of the improved drive train. These bulkheads additionally enable quick access to the differentials for effortless upkeep. Kit also comes with 2 kinds of hub providers to select from, permitting selection of a 2� or 4� caster angle.
3-Piece Propeller Shaft A new 3-piece lightweight aluminum propeller shaft reduces friction brought on by chassis roll. Combined with the front one-way bearing, speed lost when not accelerating has additionally been paid off enhancing long-distance performance. Blue anodized aluminum motor heat sink significantly improves temperature dissipation minimizing the side effects of an overheated motor.
Option Loaded Rear Suspension Utilizing the standard suspension system mount, back toe-angle is scheduled at 3�, but with the addition of Tamiya's up-grade suspension system mount (sold separately) it is possible to increase the range of 6 toe-angle settings which range from 0.5-3�. To get more accurate damper settings, standard front side and rear reduced arms is reversed increasing damper pivot choices to a total of 5 roles.
Option Parts To Have Optimum Performance
| Item No. | Product Title |
| 49345 | TB Evolution IV Titanium Screw Set (restricted release) |
| 53709 | Fluorine Coated Suspension Ball (8 pcs.) |
| 53712 | TB Evolution IV Suspension Mount X (Blue) |
| 53713 | TB Evolution IV Suspension Mount A (Blue) |
| 53714 | TB Evolution IV Suspension Mount B (Blue) |
| 53715 | TB Evolution IV Suspension Mount C (Blue) |
| 53716 | TB Evolution IV Suspension Mount D (Blue) |
| 53717 | TB Evolution IV Suspension Mount E (Blue) |
| 53718 | TB Evolution IV Titanium Wheel Axle |
| 53719 | TB Evolution IV Lightweight Propeller Joint Shaft (F) |
| 53720 | TB Evolution IV Lightweight Propeller Joint Shaft (R) |
| 53721 | TB Evolution IV Aluminum One-Way Ring Gear |
| 53722 | TB Evolution IV Stabilizer Rod Set |
| 53723 | TB Evolution IV Aluminum Servo Mount (Blue) |
| 53724 | TB Evolution IV 46mm Lightweight Swing Shaft |
| 53726 | Dia. 6mm Shim Set (3 kinds / 10pcs. Each) |
Basic Specifications
- General length: 366mm
- Total width: 189mm
- Clearance: 5mm
- Weight Fully-Equipped: 1,440g (dimension includes TP-S3003 servo, TRF2002 ESC, RC-3600HV Battery and Super Stock Type-T motor)
- Wheelbase: 257mm
- Tread: 163mm (Front & Rear)
- Chassis Material: CFRP
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 component
- Suspension: Double Wishbone (F&R)
- Caster Angle: 4� (F) / 0� (R)
- Camber Angle: Adjustable (F&R)
- Toe Angle: Adjustable (F) / 2-3.5� (R)
- Skid Angle: 0� (F&R)
- Damper: TRF Super Low Friction Dampers (F&R)
- Drive train: Shaft Driven Regular 4WD
- Gear Ratio: 6.48:1, 6.07:1 (standard)
- Diff. gear system: One-Way (F) / Ball-Diff (R)
- Speed Controller: Electronic Speed Controller
- Tire Width: 24mm (F&R)
- Tire Diameter: 64mm (F&R)
- Tread Pattern: Slicks (F&R)
Necessary Products (Available Individually)
- Body
- RS-540 Type Engine
- R/C product: Adspec GT-I or 2-channel R/C system with electronic speed control
- Battery: Tamiya 7.2V Racing Pack or comparable
