Tamiya 58469 - RC Ford Bronco 1973 - CC01  [58469]

Let's Go Off-Road

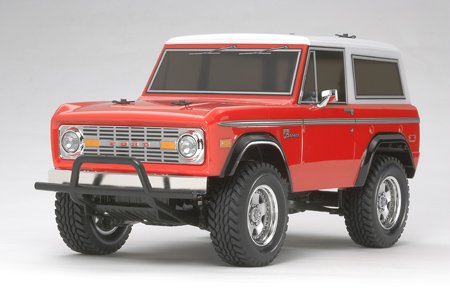

This is a 1/10 scale R/C construction kit of Ford Bronco which is called “Early Bronco” and is greatly popular as a cross-country car inside U.S. The topic of this R/C car could be the 1973 wagon model that has a white back address. The distinctive human anatomy style, including raised front hood edges, is realistically reproduced with polycarbonate. Individually molded metal-plated parts, which depict front grille, light covers, and part mirrors, add great scale realism. The Ford Bronco comes on the shaft-driven 4WD CC-01 framework which offers fun off road driving performance.

All Terrain Chassis

Exceptional ground-hugging, long-stroke suspension system is made of front double wishbone and rear 4-link rigid setups and is built with 4 oil dampers. Highly dependable and efficient full-time 4WD system features a front-mounted motor, which transmits power to leading tires through the gearbox also to a corner wheels via the propeller shaft with universal joints. Front and back differentials allow smooth cornering. Even for greater off road performance on rough surface, a corner differential can be locked during installation. Practical block-pattern tires are mounted on metal-plated wheels.

In regards to the Ford Bronco

Us 4WD automobiles produced before 1966 were viewed as large, crude devices, nevertheless the Ford Bronco that was released that 12 months broke the mold along with its lightweight design and created a dynasty. It was offered in three human body types: the open-top roadster, the “sport utility” half cab, together with wagon. The framework showcased a drivetrain from the Ford F100 pick-up that matched the newest framework and suspension system. Specifically, the front suspension system ended up being built with coil springs to deliver both a comfy trip and superb off road ability. The very first generation “Early Broncos” had been produced until 1977 and stay acutely popular as cross-country and rock-climbing automobiles even today.

Specs & Features

• Length: 422mm
• Width: 195mm
• Height: 200mm
• Body weight: 1480g
• Wheelbase: 242mm
• Tread (F/R): 160mm
• Tire Width/Diameter (Front & backside): 33/90mm
• Ladder Frame Bathtub Type Chassis
• Longitudinally-Placed Engine Shaft-Driven Full-Time 4WD
• Front and Back 3-Bevel Differential Gears
• Front Suspension: Double Wishbone, Rear Suspension: 4-Link Rigid
• Front and Back CVA Oil Dampers
• Gear Ratio=1:14.67

Individually Required Items

• Finespec Radio Control System w/ESC
• 8xR6/AA/UM3 Batteries for Transmitter
