Tamiya 58476 - RC Honda CIVIC TYPE-R R3 J.A.S. MOTORSPORT - FF03  [58476]

European Starlet

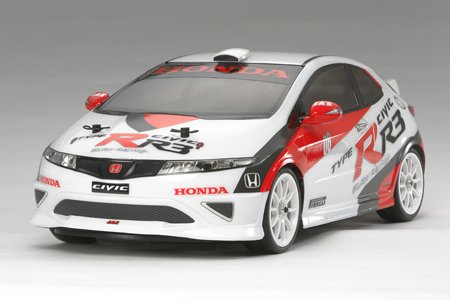

This will be a 1/10 R/C assembly model kit associated with Honda Civic Type-R R3 which was developed by Italian formal Honda race partner, J.A.S. Motorsport. The proper execution of 3-door hatchback, which features an air-intake on the top, is realistically reproduced. Components including the roof's air-intake, part mirrors, and back spoiler are reproduced with split components to provide the model with a sharper presence. The kit includes sticker sheet to faithfully replicate the red and dark gray livery therefore the Type-R logos. The Honda Civic Type-R comes packed on front wheel drive FF-03 chassis.

FF-03 Chassis

The longitudinal battery pack design allows for a slim chassis design, because of the R/C units packed on either side for maximum balance. In addition, the front-mounted, compact gearbox comes with a ball differential and offers the framework with a sufficient quantity of traction. 4-wheel double wishbone suspension features CVA oil dampers. An Inboard Front Suspension set-up with quick reversible suspension arms allows well-balanced settings. Additionally, the rocker bridge is equipped with stabilizer holders. Manage the FF-03 framework and enjoy a new driving experience.

Specs & Features

• Length: 423mm,
• Width: 188mm,
• Height: 140mm
• Wheelbase: 257mm (257, 245, 233mm Adjustable)
• Tread (F/R): 157mm
• Bathtub Type Frame Chassis
• Front Motor Front Wheel Drive
• Ball Differential Gear
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• CVA Shock Device Super Mini
• Tire Width/Diameter (F/R): 24mm/64mm
• Gear Ratio=6.80:1
• Type 540 Engine Included
• Needs Electronic Speed Controller (individually available)

Individually Needed Items

• EXPEC GT-I 2.4G Radio Control System
• R6/AA/UM3 (x4) Batteries for Transmitter
