Tamiya 58480 - 1/10 RC Honda Civic Type-R R3 - TT01E JAS Motorsport  [58480]

J.A.S. Tuned Hatchback

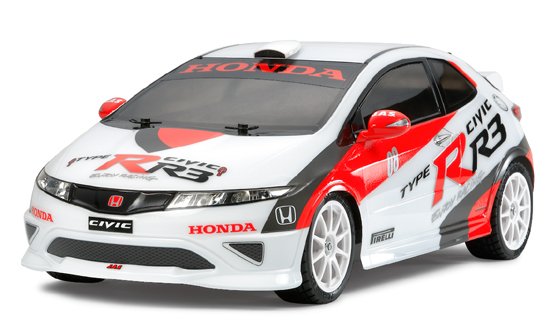

This really is a 1/10 R/C assembly model kit of the Honda Civic Type-R R3 which was produced by Italian official Honda racing partner, J.A.S. Motorsport. The form regarding the 3-door hatchback, which features an air-intake on the roof, happens to be realistically reproduced. The stated air-intake, part mirrors, and rear spoiler are reproduced with split parts to produce the model with a sharper presence. LEDs are set up inside front side & rear metal-plated light cases to depict head (white) and tail (red) lights. The kit includes a sticker sheet to faithfully reproduce the red and dark gray livery and also the Type-R logos.

Evolved Chassis

The bath tub framework of the developed shaft-driven 4WD TT-01 Type-E has its motor and battery near the ground for lower center of gravity and optimum balance. Mounted on the bathtub framework are a fiberglass reinforced nylon upper deck and gear covers which improve rigidity, plus a 3-piece tie rod to produce smooth steering action. The low center of gravity, great balanced design, 4 wheel double wishbone suspension system system, and front and rear differential gears all come together to result in superb driving traits. In addition, rushing radial tires with realistic tread pattern are installed on 10-spoke tires.

Specs & Features

• Length: 423mm,
• Width: 188mm,
• Height: 140mm
• Wheelbase: 257mm
• Tire Width/Diameter (Front & back): 27/67mm
• Bathtub Type Chassis Frame
• Longitudinally-Placed Motor Shaft-Driven Full-Time 4WD
• 3-Bevel Differential Gears
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front & Rear Friction Dampers
• Gear Ratio=8.35:1
• Type 540 Motor
• Needs electronic speed controller (sold separately)
• A multitude of choice components are so that you can further modify your machine:
  Item 53694 TT-01 Front Stabilizer Set
  Item 53695 TT-01 Back Stabilizer Set
  Item 53800 Aluminum Toe-In Backside Uprights
  Item 53664 Aluminum Engine Heat Sink
  Item 53448 4mm tough Lock-Nut & Spacer Set
