Tamiya 58490 - 1/10 RC Honda CR-Z - FF-03 Chassis  [58490]

A Sporty Hybrid

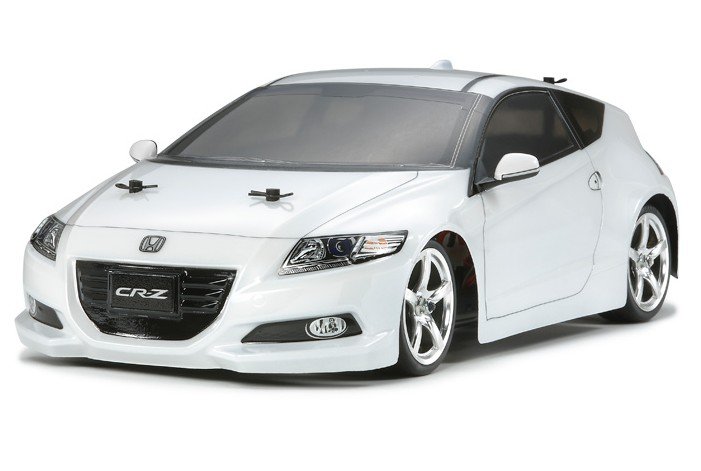

The Honda CR-Z, a gasoline-electric hybrid sports vehicle, ended up being known as the "Car of the season 2010-2011" in Japan which award-winning car now comes reproduced as a 1/10 scale R/C assembly kit. Its trendy outside, such as the fin kind antenna on top, is faithfully reproduced by the polycarbonate body. The FF-03 chassis offers practical front-wheel drive control as well as its metal-plated 5-spoke wheels function an attractive semi-gloss finish.

FF-03 Framework

The longitudinally-mounted battery pack allows for a slim framework design, with all the R/C devices packed on either part for optimum stability. In addition, the front-mounted, compact gearbox comes with a ball differential and sufficient traction. The 4-wheel double wishbone suspension features CVA oil dampers while an Inboard Front Suspension set-up with quick reversible suspension arms enables well-balanced settings. In addition, the rocker connection comes with stabilizer holders. Take control of the FF-03 framework and luxuriate in an energizing R/C driving experience.

Specs & Features

• Length: 435mm,
• Width: 191mm,
• Height: 136mm
• Wheelbase: 257mm (257, 245, 233mm Adjustable)
• Tread (F/R): 157mm
• Bathtub Type Frame Chassis
• Front-Mounted Motor, Front-Wheel Drive
• Ball Differential Gear
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• CVA Shock Unit Super Mini
• Tire Width/Diameter (F/R): 24mm/64mm
• Gear Ratio=6.80:1
• Type 540 Motor Included
• Requires Electronic Speed Controller (separately available)

Separately Needed Products

• EXPEC GT-I 2.4G Radio Control System
• R6/AA/UM3 (x4) Batteries for Transmitter
