Tamiya 58598 - 1/10 Raybrig NSX Concept-GT (TB-04 Chassis)  [58598]

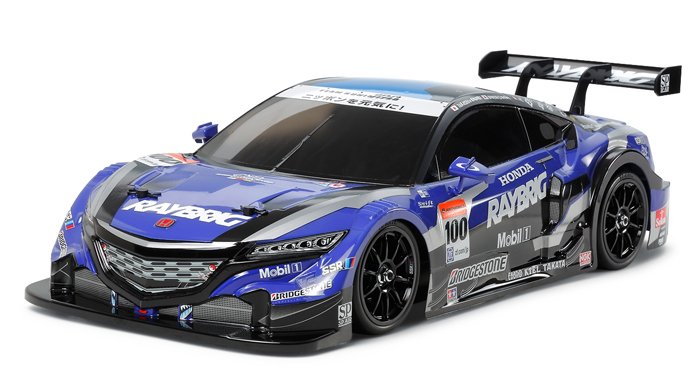

• Here is the 3rd launch on Tamiya's RC high end TB-04 framework platform. The model illustrates the RAYBRIG NSX CONCEPT-GT, a car developed by Honda to race in the 2014 Japanese Super GT Series. The hi-tech battle automobile features a 1.6-liter turbocharged direct injection engine with anti-lag, plus a mid-ship layout that optimizes circulation associated with car's fat, particularly using into consideration its unique hybrid system.

  The TB-04 is a 1/10 scale 4WD machine that includes a drive-shaft down the center of the chassis to activate the front and rear gearboxes. The differentials in the gearboxes are newly created while they use a sealed gear differential system whereby the inner gears motion is managed by different viscosity differential liquids. The double-wishbone suspension system makes use of the exact same "short reversible" kind that's been used on the TB-03, TA-05 variation II, TA-06 while the TRF (Tamiya Racing Factory) 416 and 417 World Championship machines. The TB-04 also incorporates "IFS" (inboard front suspension system) whereby leading shocks sit horizontally and low towards the framework, making sure that low profile low rider body forms are accurately reproduced without losing any practical scale appearance.

Requirements:

• Scale 1/10

• Construction type: Assembly kit

• Terrain use: On-Road

• Drive-train: 4WD

• Drive kind: Gearbox

• Drive line: Puppy bone

• Differential type: Sealed oil-filled gear

• Suspension: completely separate dual wishbone

• Steering device: Bell-crank

• Shock damper: Oil-filled damper

• Shock damper product: Synthetic

• Tire kind: Rubber

• Tire tread: Slick

• Body product: Polycarbonate

• Chassis product: FRP (Fiber Reinforced Plastic)

• Electronic Speed Control (ESC): Perhaps Not included

• ESC model: N/A

• LED Light buckets: No

• Light-emitting Diode lights: No

• Motor: Not included

• Bearings: Sealed ball bearing

• Adjustable camber: Yes

• Adjustable toe perspectives: Front and rear

• Adjustable ground approval: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Yes

• Adjustable track width: Yes

• Adjustable surprise angle: Yes

• Unique function 1: brief reversible Suspension Arm System

• Unique feature 2: IFS (Inboard Front Suspension) featuring push-rods

• Unique feature 3: The model uses 6-degree hub carriers

• Special function 4: Length: 475mm, width: 188mm. Wheelbase: 257mm

• Special feature 5: individual ABS molded components are included to replicate the powerful rear wing and unique door mirrors

• Special feature 6: Includes body markings and masking stickers for use when painting the model

• Requires A: 7.2 battery & charger

• Requires B: 2-channel radio gear & electronic speed control

• Requires C: Engine

• Requires D: Polycarbonate paint
