Happy Trials...

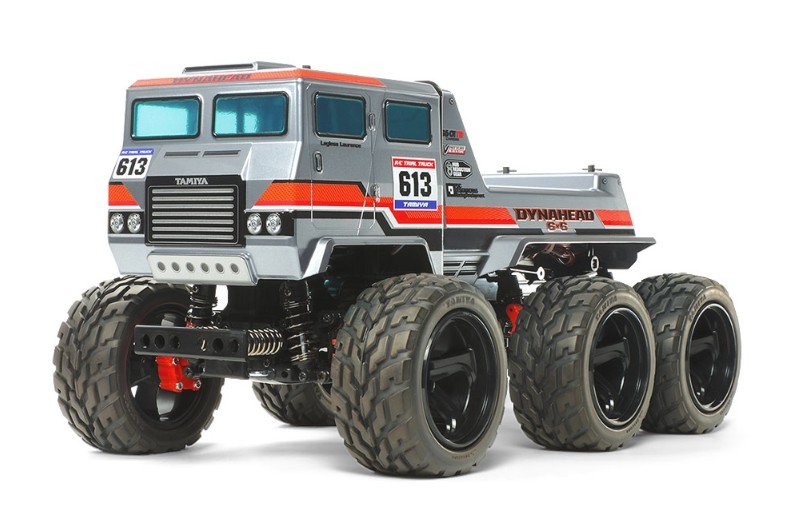

This R/C model assembly kit creates the Dynahead 6x6. Its polycarbonate human anatomy is inspired by a cabover test trucks especially popular on European scene, and created by Takayuki Yamazaki. The boxy design features rear-hinged home motifs and has a wild appearance perfectly suited to the off-road. The model is based upon the 6-wheel drive G6-01TR, that offers extreme performance on tough areas, and because of its long wheelbase may also negotiate slopes as high as 40 degrees.
G6-01TR Chassis: Immense Traction
Reduction gears for each axle sluggish drive shaft rotation to offer the 6-wheel drive G6-01TR chassis a general gear ratio of 37.35:1, for immense traction, which and its great ground clearance gives the power to accept tough off-road terrain. It's based around a hardcore, slimline monocoque frame. Power is provided by a motor behind the leading wheels, and sent to forward, center and back tires via gears. The gearbox is sealed to protect from dust and debris, and incorporated into the framework; it has built-in front, center and rear differential gears offering superb traction and durability if you use included diff putty. Double wishbone suspension system is fitted with friction dampers, while black 5-spoke wheels are paired with 110mm diameter V-pattern block tires. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C gear, the trunk tires is made steerable.
specs
Length: 428mm, Width: 256mm, Height: 222mm Wheelbase: 173mm + 126mm Tread: 209mm (Front, Center and back) Tire Width/Diameter: 50mm/110mm Monocoque Frame Gear-Driven 6WD 3-Bevel Differential Gears 2-Piece Steering Tie-Rod 6-Wheel Independent Double Wishbone Suspension Gear Ratio = 37.35:1 Type 540 engine Requires a digital Speed Controller (offered separately)
Separately Required Items
2-Channel R/C device with ESC Battery Pack & Charger R6/AA/UM3 batteries for transmitter
