Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit  [58707]

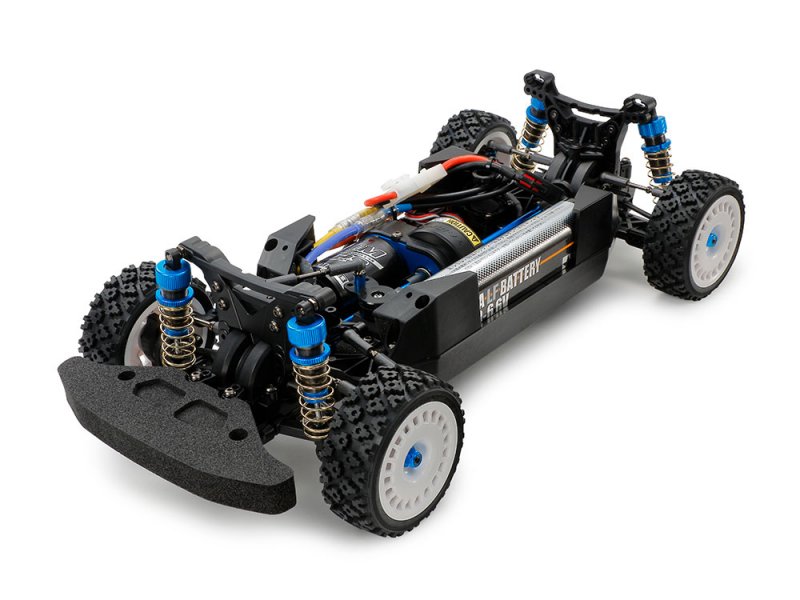

Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit
Price:
AUD$369.63
Brand:
Tamiya
Model:
58707
GTIN:
4950344587070
Condition:
Brand New
Available in warehouse
2 Reviews
Write a review
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
alt="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit" title="Tamiya 58707 - 1/10 XV-02 Pro Chassis Kit"
The all-new XV-02 professional chassis kit is Tamiya’s next contemporary era, function built, 4WD Rally device! The XV-01 professional included a 4WD gear drive system with clever positioning the RC electronic components with debris protection compartments. The all-new XV-02 professional took its 4WD drivetrain into an alternative direction with the use of a shaft-driven system with front mid-ship engine positioning that features equal size front side and rear propeller shafts!

XV-02 chassis immediately:
• comes with two 39T differential gears plus one 40T differential gear for modification of front side and back drive security. (Over-Drive and Under-Drive modification)
• usage 39T gear (w/15T gear) on front side and 40T gear (w/15T gear) in the backside for drive balance bias to front and vice-versa for drive security bias to rear.
• Features newly-designed elements such as gears, bathtub frame framework, framework address, caster obstructs featuring 6-degree caster angle (XV-01 framework: 10-degree caster angle), and bumpers with skid perspectives to lessen surface contact.
• The engine mount, propeller shafts, input and center shafts, and urethane bumpers have actually new metal elements.
• Features a longitudinal battery power place in center-left for maximum balance.
• much longer aluminum dampers are employed at front side and back.
• A polycarbonate framework address with wheel well liners help out with preventing dust and dust from getting in.
• Suspension arms and front uprights are based on the XV-01 framework kit.
• is sold with rally block tires and tires.
• needs: Tamiya Rally Body, 2-channel radio, servo, ESC, 540-type motor, and 7.2-7.4volt battery pack with compatible charger.

specs
● Chassis size 368mm (excluding human anatomy)
● Chassis width 180mm
● Wheel base 257mm
● Frame = bath tub type
● Drive system = front midship engine / shaft drive 4WD
● Diff gear = oil-filled gear differential for both front side and back
● Steering = 3-split tie pole type
● Suspension = 4-wheel double wishbone
● Damper = Aluminum cylinder long oil damper (blue limit specification)
● Gear ratio = 9.58: 1 with all the 19T pinion contained in the kit (10.71: 1 to 6.28: 1 in conjunction with the individually sold pinions (around 14 forms of gear ratios is opted for)

Specification:
  • Adjustable Gear Ratio : Yes
  • Bearings : Includes complete ball bearings
  • Chassis Material : FRP Fiberglass Reinforced Plastic
  • Chassis Type : XV-02
  • Construction Type : Assembly Kit
  • Differential Type : Gear-Type (Oil-Filled)
  • Drive sort : 4WD
  • Required To Complete : 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery pack & battery power charger, Rally Body, and Tamiya PS paint.
  • Scale : 1/10
  • Shock Damper : CVA Oil Filled
  • Suspension : Fully Independent Double Wishbone
  • Terrain utilize : Multi-Purpose
