This Universal Slider Set is a fresh product for the Educational Construction Series! These construction slides can complement universal fingers. Use them to convert gearbox rotation into linear motion (slider-crank procedure) or utilize them as guide components for linear movement. Simple framework (slider base with attachment holes and rollers) enables compact construction.
• Slider width: 29.2mm, depth: 29.2mm, height: 20.2mm. Weight: 5.8g. (approximate)

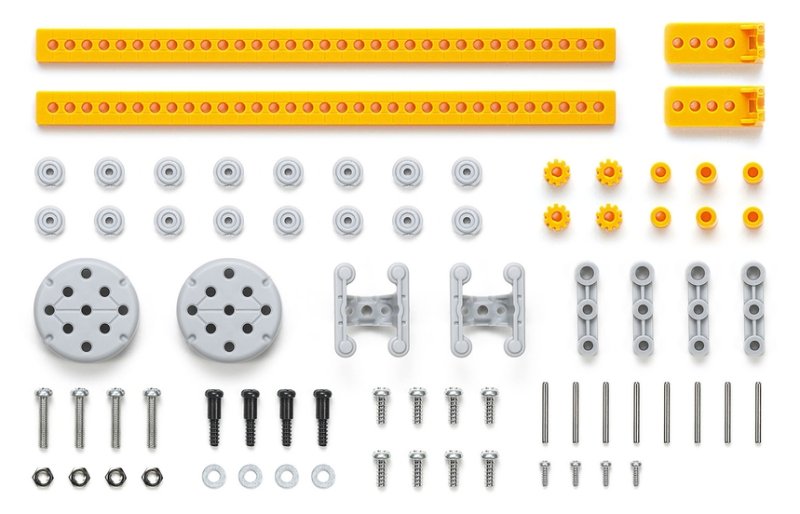

Includes these parts:
1. Parts for sliders x2
2. Universal supply x1
3. 3x8mm tapping screws x8.
4. 2x6mm tapping screws x4.
5. 3x14mm action screws x4
6. 3x15mm screws x4
7. 2x17mm shafts x8
8. 3mm washers x4
9. 3mm nuts x4.
• can be employed with straight and curved universal fingers.
• Sliders also can go along 20mm gaps.
• Includes joint component which links slider with universal supply and works considering that the axis of rotation.
