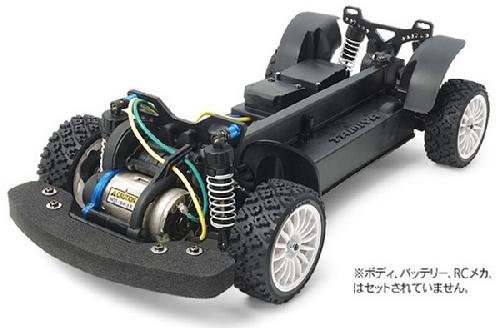

Tamiya 84375 - 1/10 RC XV-01 Chassis Kit Long Damper Spec  [84375]

This limited edition form of the versatile XV-01 framework is established to use long dampers and offers an even greater off-road driving experience, while nevertheless maintaining exactly the same base since the original XV-01.

The 4WD XV-01 chassis provides dynamic R/C rally driving on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with front and backside enclosed gearboxes built with gear differential units. The box-like main framework includes covers and wheel well liners to offer superb protection against dirt and debris. The 4-wheel double wishbone suspension system ensures plenty of suspension system swing and ground approval and it is matched with Rally Block Tires on replica tires for practical maneuvering

• Scale : 1/10
• Construction kind : construction kit
• Terrain usage : multi-purpose
• Drive-train : 4WD
• Drive kind : Dual-Drive
• Drive line : dog bone
• Differential type : sealed oil-filled gear
• Suspension : completely separate double wishbone
• Steering procedure : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : plastic
• Tire kind : plastic
• Tire tread : rally block
• Body material : perhaps not included
• Chassis product : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : 540-brushed type
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe perspectives : front side and rear
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes
• Special feature 1 : Wheelbase: 257mm
• Special feature 2 : The framework is fitted with newly-designed front side and back damper remains to permit maximum exploitation for the extensive stroke given by the CVA mini oil dampers.
• Special feature 3 : Suspension arm components are created to let the vehicle to perform optimally making use of ground clearance of 10mm or more, which makes it ideally-suited to off-road running.
• Special function 4 : The XV-01 framework uses a front-motor, belt-driven 4WD layout with all the drive gear, battery pack and R/C equipment protected from dust and debris by covers.
• Special function 5 : Compatible with Lancia Delta Integrale, Subaru Impreza WRX STI Team Arai, Subaru Impreza WRC 2008 or Mitsubishi Lancer Evo. X systems (offered individually).
• Requires A : 2-channel radio gear & electronic rate control
• Requires B : 7.2 battery pack & charger
• Requires C : Body set
• Requires D : polycarbonate paint
