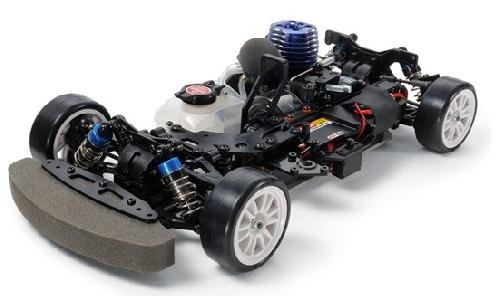

Tamiya 84390 - 1/10 TG10-Mk.2 FZ Chassis Kit  [84390]

This kit views the TG10-Mk.2 glow-engine R/C framework fitted with a whole new engine!

The FS-12FZ Engine

The Tamiya FS-12FZ engine has an ability of 2.1cc and features tapered sliding carburetor, plus a simple yet effective heat sink for temperature dissipation. It provides a great mix of linear torque and high output, while being very easy to setup and maintain. It features a 2-speed transmission.

Features:

• The 2.1cc Tamiya FS-12FZ motor is equipped with a 2-speed transmission, and could be started with minimal hassle utilising the handily-sized recoil starter device.

• Tapered sliding carburetor helps ensure that the chassis enjoys linear torque without compromising the high output necessary for hi-speed circuits.

• A durable polycarbonate address is in place to guard the spur gears untilized within the 2-speed transmission.

• The slimline TM-8 exhaust drastically cuts the likelihood of experience of the body shell.

• 4-wheel double wishbone suspension system uses ball connectors. Oil dampers feature aluminum cylinders.

Specs:

• Exceptional security is supplied by a difficult double-deck framework with 3mm-thick duralumin reduced, and resin top decks.
• The effective 2.1cc FS-12FZ glow motor makes this chassis excellently-suited to high-speed circuits, while still providing linear torque.
• Length: 377mm
• Wheelbase: 257mm
• Double Deck Chassis (3mm-Thick Aluminum Lower & 3mm-Thick Reinforced Nylon Resin Upper Decks)
• Shaft-Driven 4WD
• F/R Tread 172-176mm (adjustable)
• Differentials: Front 4-Bevel, Rear 2-Bevel
• Front & Rear Fluorine-Coated Aluminum Dampers
• Gear Ratio = 7.02:1 (1st Gear), 5.42:1 (2nd Gear)
• TM-8 Exhaust
• FS-12FZ motor (2.1cc)
• 75cc gas Tank

Separately Necessary Items:

• 2-channel R/C system
• Glow motor Fuel (nitromethane content: 16-20%)
• Fuel Pump
• Plug Heater
• Body
• Wheels
