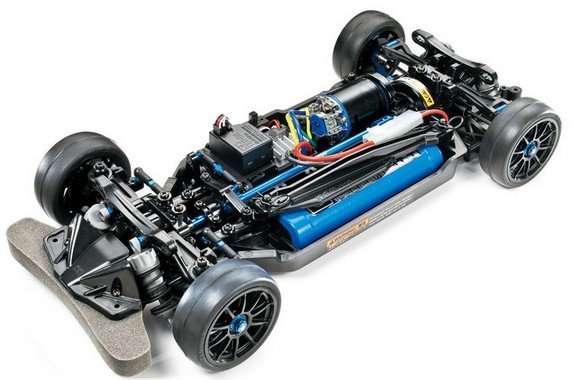

Tamiya 84409 - 1/10 TT-02R Chassis Kit - TT02  [84409]

This refined, race-spec form of the TT-02 chassis features a wide range of choice parts and newly-designed components making it prepared to race! The included racing spec parts include upgraded uprights, engine mount, shafts, joint cups and more, as the suspension is equipped with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive traits.

Featured elements:

• Aluminum uprights (3 degree toe-in)

• Aluminum engine mount

Included Hop-Up-Option parts:

• 53159 4mm Aluminum Flange Lock Nut (Blue)

• 54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2

• 54501 TT-02 Aluminum Propeller Shaft

• 53642 5mmAluminum Ball Connector (Blue)

• 54500 TT-02 High-Speed Gear Set (68T)

• 54502 TT-02 Aluminum Propeller Joint

Specs:

• Scale: 1/10

• Construction type: Assembly kit

• Terrain use: On-Road

• Drive-train: 4WD

• Drive kind: Shaft

• Drive line: Dog bone tissue

• Differential type: Gear

• Suspension: Fully separate double wishbone

• Steering mechanism: Bell-crank

• Shock damper: Oil-filled damper

• Shock damper product: Plastic

• Tire type: Rubber

• Tire tread: Slick

• Body product: N/A

• Chassis material: synthetic

• Electronic Speed Control (ESC): Perhaps Not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Motor: perhaps not included

• Bearings: Plastic bushing

• Adjustable camber: Fixed

• Adjustable toe angles: Front only

• Adjustable ground approval: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Yes

• Adjustable track width: Yes

• Adjustable surprise angle: Yes

• Special feature 1: Newly-designed aluminum uprights now provide 3 degrees of toe-in, offering greater stability whenever cornering.

• Special function 2: New aluminum engine mount offers improved temperature dissipation and greater rigidity of accessory.

• Unique feature 3: better effectiveness is achieved within the drivetrain with aluminum center shaft and glass.

• Unique feature 4: CVA oil dampers function a silver color scheme newly implemented because of this model. They normally use black colored springs.

• Special feature 5: is sold with fashionable 10-spoke wheels.

• Requires A: 7.2 battery pack & charger

• Needs B: 2-channel radio gear, ESC, motor

• Needs C: Tires

• Needs D: Body set
