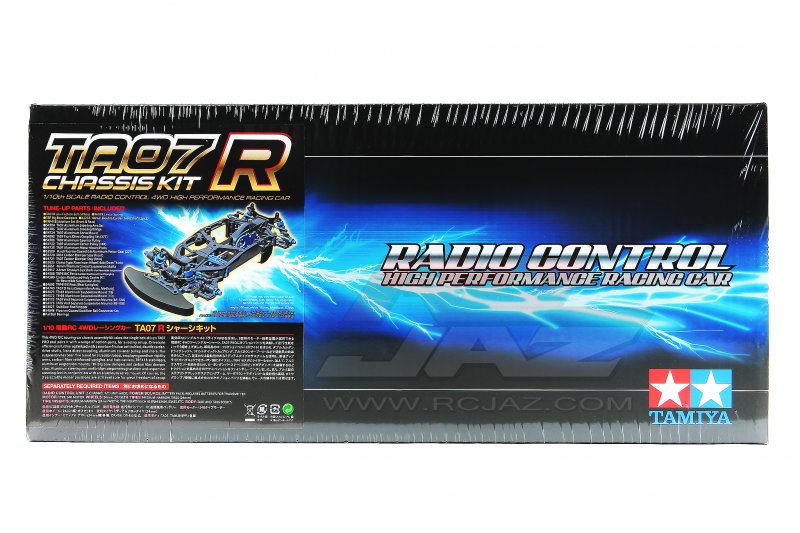

This 4WD R/C touring automobile framework installation kit takes the solitary belt-driven TA07 PRO and pairs it with a vast array of option components, for a fantastic race setup appropriate out of the field! As well as a number of Hop-Up Option components, in addition has parts through the Tamiya Racing Factory Series and even a new low-friction drive gear made specially with this model.
towards TA-07
The TA-07 framework rushing kit relies around a composite structure that is comprised of a narrow reduced deck and an upper frame. The component design layout supplies the chassis optimal torsional rigidity which is often further adjusted by eliminating the frame center area. The very efficient single gear drivetrain provides 3 motor place locations, each using its very own performance characteristics worthy of various tracks and setups. Tested TRF419 design suspension system, gear differential devices and steering elements are combined with proven TRF aluminum shock dampers and universal shafts to create this framework a hi-spec racer!
New parts included in this kit:
TA07R minimal Friction Belt (White)
TA07R Linear Damper Springs
Included Hop-Up Alternatives
TRF Big Bore Dampers
Comprehensive Ball Bearings
42216 44mm Double Cardan Joint Shaft (2pcs.)
42281 TRF418 Stabilizer Set (front side & back)
54704 TA07 Aluminum Steering supply Set
54705 TA07 Aluminum Steering Bridge
54724 TA07 Aluminum Servo Mount
54690 TA07 Front Direct Coupling Set (37T)
54706 TA07 Aluminum Counter Pulley
54722 TA07 Aluminum Center Pulley (18T)
54725 TA07 Aluminum engine Mount Posts
53509 complex Fluorine Coated 0.6 Aluminum Pinion Gear (20T)
54720 TA07 Carbon Damper Stay (front side)
54721 TA07 Carbon Damper Stay (Rear)
53823 Clamp Type Aluminum Wheel Hub (5mm Thick)
53851 46mm Titanium Coated Suspension Shafts
53917 2.6mm Titanium Suspension Shaft - For Reversible Suspension
54568 TRF418 C Parts (Carbon Reinforced Front Uprights)
54580 Carbon Reinforced Hub Carrier (4˚) for Reversible Suspension Arms
54692 TRF419 E Parts (back Uprights)
54740 TA07 D Parts (Suspension Arms, Medium)
54070 TB-03 Aluminum Suspension Mount (1B)
54072 TB-03 Aluminum Suspension Mount (1D)
54172 TA05 Ver.II individual Suspension Mounts (1A-1XA)
54173 TA05 Ver.II Separate Suspension Mounts (1B-1XB)
53827 Stabilizer Rod Stopper
54648 Fluorine Coated Stabilizer Ball Connector Set
