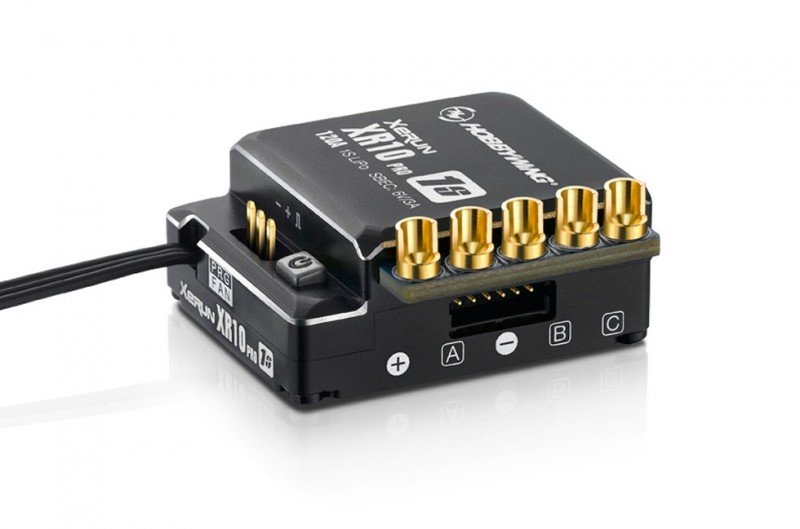

Special Design for 1/12th Scale Top Racing
Reliable equipment along side great software (contains 5 typical ready-to-use pages)
produces a perfect energy solution to1/12th scale top touring car racing.
Small Size & Light Weight
Height of 15.9mm (6mm smaller set alongside the previous V3.1 1S ESC) saves room and makes the
installation convenient; fat of 35.6g (12g lighter versus previous V3.1 1S ESC)
provides more body fat margin whenever adjusting just how much linked to the framework.
Super BEC
Internal BEC features booster circuitry can output the current/voltage because high as 6A/6V and
power various servos without linking any extra receiver battery.
Built-in Electronic change & Capacitor Module
The integrated electronic switch with a lifespan of over 50000 on/off rounds
entirely solves the problems like stuck reed, rusted contact points, and
automatic shutdown traditional technical switches frequently have.The inside
capacitor module saves space and makes the wiring simple and easy neat.
Programming/Upgrading/Data
Reading Wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android os phone (with all the HOBBYWING WiFi Link
software set up), the customer can remotely prepare parameters, upgrade firmware and
check always relevant information for the ESC without making the control stand.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and stopping system control for several classes of tournaments (esp. the inventory course).
Separate Programming/Fan Port
The split PRG/FAN slot regarding ESC can power an outside fan to maximise ac performance
or connect the ESC to a LCD system field or WiFi module for ESC development.
Revolutionary Data-logging Function
This ESC features the data-logging function which can record the utmost ESC/motor
temperature, RPM and an such like. instantly and allows users to test those
data via a LCD system package or WiFi module after each usage.
Item Specification
Type
- Scale : 1/12th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : No
Specifications
- Cont./Peak Present : 120A/830A
- Input Voltage : 1S Lipo/3-4 Cell NiMH
- BEC Output : modification Mode: 6V@3A
Wires & Connectors
- Input cables : Red-12AWG-200mm*1 Black-12AWG-200mm*1
Red-14AWG-200mm*1 Black-14AWG-200mm*1 - Output Wires : Black-12AWG-200mm*3 Black-14AWG-200mm*3
- Input Connectors : No
- Output Connectors : No
ESC Programing via
- SET Button on ESC : perhaps not Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : specific Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 37.5x31x15.9mm
- Weight : 35.6g
