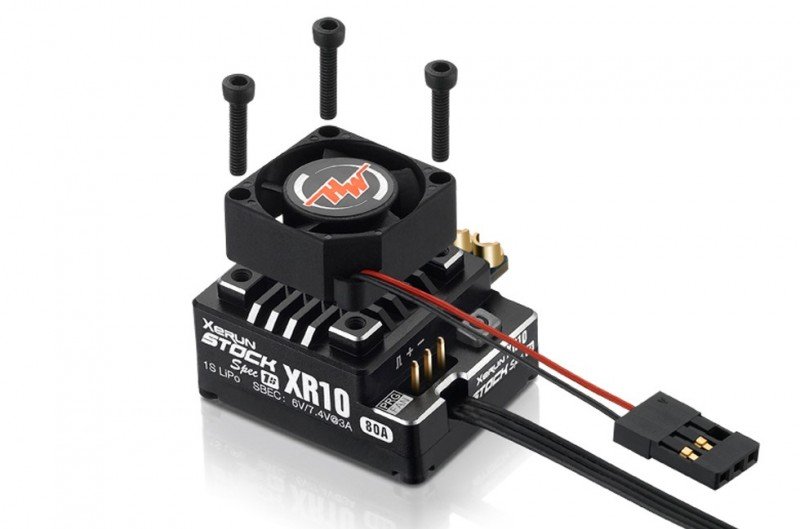

HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751 [HW-30112751]

Price:

AUD$195.06

Brand:

Hobbywing

Model:

HW-30112751

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category

Write a review

alt="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751" title="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751"

Description

Minimal & Lightweight

The small size (20per cent smaller compared to the conventional variation XeRun XR10 professional 1S)
saves area which means light-weight (just 23.5g w/o cables) provides more
fat margin whenever adjusting the balance regarding the framework.

Super Internal BEC

The integral boost BEC with a maximum manufacturing of 6A and voltage
adjustable between 6V and 7.4V permits users to work with different,
servos and receivers (without connecting any extra battery pack).

Adjustable Throttle & Brake PWM Frequencies

The independent and adjustable throttle & brake PWM frequencies guarantee users the
accurate and accurate throttle and stopping system control.

Programming/Upgrading/Data Reading Wirelessly

With Hobbywing's "WiFi Express" module and iPhone or an Android os phone (because of the HOBBYWING
WiFi Link pc software set up), an individual may from another location program parameters, upgrade firmware and always check
appropriate data of ESC without making the control stand.

Incorporated Electronic Switch

The interior electronic switch with a lifespan of over 50000 on/off rounds
totally solves the difficulties like stuck reed, rusted contact points, and
automated shutdown old-fashioned technical switches often have.

Data-logging Capability

This ESC features the data-logging function that'll record the
optimum ESC& engine conditions, the most motor RPM,
and etc. instantly and enables users to be sure of those data via a LCD
system package or WiFi module after each usage.

Product Specification

Type

Scale : 1/12^th
Brushed/Brushless : BL
Sensored/Sensorless : SD
Waterproof : No

Specifications

Cont./Peak Current : 80A/380A
Input Voltage : 1S Lipo/3-4 Cell NiMH
BEC production : 6V/7.4V@3A

Wires & Connectors

Input Wires : Black-14AWG-200mm*2
Output cables : Black-14AWG-200mm*3
Input Connectors : No
Output Connectors : No

ESC Programing via

SET Button on ESC : maybe not Supported
LED Program Box : maybe not Supported
LCD Program Box : Supported
WiFi Module : Supported
Programming : split Programming

Firmware

Firmware Upgrade : Supported

Size & Weight

Size : 31.6x25.8x16.2mm
Weight : 23.5g (w/o Wires)

Applications

Motors : SL BL Motors
SD BL Motors
Vehicles : inventory 1S class of 1/10^th & 1/12^th on-road racing.
KV Rating/T Count : ≥10.5T, 3650-size Motor
