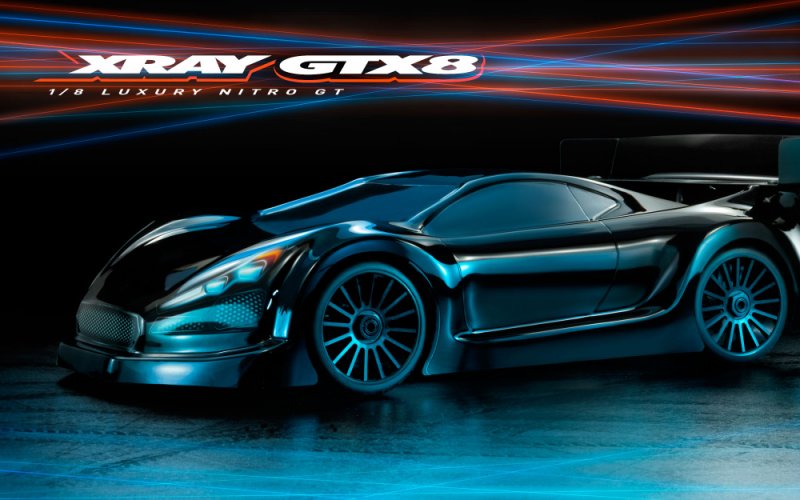

XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car  [XR-350501]

XRAY GTX8

Chassis

• CNC-machined framework created from 3mm top-notch Swiss 7075 T6 aluminum
• Strategically machined for ultra-light fat and uncompromised power & rigidity
• Pre-drilled centerline holes to be utilized with HUDY Chassis Balancing Tool
• 1-piece, compact, easy-to-remove electronic devices assembly
• Front & rear framework braces for adjusting framework tightness & flex
• Large, easy-access, molded radio box
• Super-strong diff bulkheads household the differentials and offer mounting points for suspension mounts and surprise towers
• Extra-thick, premium-grade graphite shock towers include numerous surprise mounting positions
• Connecting link between throttle servo and radio field, for reduced total of vibrations to chassis and more accurate throttle & brake control.
• Compact front part foam bumper produced from high-resilience, lightweight foam
• Front upper bumper owner & paid off composite bumper are molded from rigid composite to withstand hard crashes

Engine & Clutch

• High-torque clutch for smooth and continuous energy transfer at high RPM
• Swiss 7075 T6 small, lightweight clutch footwear allow smoother engagement at high RPM
• Extra-tough Hudy Spring Steel™ flywheel nut
• Optionally-available softer & harder clutch springs
• High-grade, CNC-machined aluminum engine mounts
• Extra-large ability 150mm gas tank made out of unique composite combination features a drifting rock filter and internal baffles to make certain constant fuel supply
• Fuel tank mounting with rubber grommets to absorb vibration

Brake system

• Well-proven, superior braking system for strong, exact and dependable stopping performance.
• Laser-cut, precision flat-ground steel braking system disk allows fade-free braking
• Special high-grip stopping system pads create on laser-cut steel backing plates
• Rigid, high-precision machined brake cam posts

Drivetrain

• Conventional shaft-driven 4WD drivetrain
• Front & backside gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
• Central 2-speed gearbox
• front side, back, and primary CVD drive shafts produced from HUDY Spring Steel™
• Central larger & more powerful outdrives work protective plastic shoes, dense 3mm pins, and a protective locking ring
• Rubber-sealed composite differential housings with metal inserts.
• Pressed metal inside diff gears, heat addressed & machined for ultra-high precision and smooth operation
• Diff gears created from unique HUDY Gear Steel
• Super-lightweight, hardened diff outdrives created from HUDY Spring Steel™
• Ultra-lightweight 17mm wheel hex drive hubs re CNC-machined from Swiss 7075 T6 black-coated aluminum
• Full band of 27 high-speed, lightly-oiled, blue-sealed ball-bearings make certain optimum efficiency
• 2-speed transmission mounted on a precision-manufactured, super-smooth layshaft created from tough HUDY shaft steel for 2-speed, which will be furthermore heat addressed for additional power and durability.
• 2-speed gear adapter made out of hardened steel
• 2-speed gear adapter CNC-machined from Swiss 7075 T6 with 1-way bearing for super-precise and wobble-free spur gear mounting

Suspension

• Ultra-robust XRAY Pivot Ball Suspension XPBS™ with built-in suspension system system geometry adjustment
• Integrated Suspension Settings™ (I.S.S.) for fast & effortless suspension system geometry setting
• Suspension fingers with optimal size, depth, freedom, geometry of suspension system points, and product characteristics.
• Super-lightweight composite steering obstructs + rigid Swiss 7075 T6 kingpin plate
• Easily-settable kingpin meal provides either 0° or 7° angle
• Optional kingpin meals available
• Ultra-tiny composite back uprights + stiff Swiss 7075 T6 mounting plate
• Extra-strong & robust front side top arms
• Exclusive composite mixtures developed in-house by XRAY offer perfect stability between reliability and performance
• Turnbuckles created from unique mixture of HUDY Spring Steel™ particularly formulated for turnbuckles
• Front & backside anti-roll bars manufactured from spring steel item

Steering

• Dual-arm steering system with adjustable Ackermann
• Swiss 7075 T6 aluminum steering plate
• Quick & easy Ackermann and bump steer modification

Shocks

• Big-bore shocks for ultimate dependability and performance
• 18.5mm outer-diameter hardcoated surprise bodies
• Shock human anatomy outside threading enables fast & effortless springtime preload adjustment
• Ultra-precise big-bore 6-, 8- and 10-hole surprise pistons made from Delrin™ product for smooth procedure and durability
• Shock springs are manually measured, chosen and matched into pairs to guarantee exactly equal size and damping characteristics
• HUDY Exclusive Silicone sebum are stated in europe, and every batch of is laboratory tested and calibrated to guarantee the maximum persistence and quality batch-to-batch. On the basis of the industry-standard cSt rating, the oils is supposed become super easy to find out, adjust, and feel.

Body & Wing

• XRAY self-designed GTX human anatomy (optional) created from top-quality Lexan™ item features high-downforce areas for appropriate airflow and improved stability
• Molded wing struts (3) for added durability and superior mounting
• High-strength wing
• Composite part guards protect the car, muffler, and gas tank from part effects. The inside guards completely fit the framework and seal against dirt.
• Optional graphite part guard braces allow actually efficient and simple framework flex modification to modify the control for the car to different track conditions.

Assembly & Support

• Premium 3D full-color Instruction Manual
• Premium, unmatched XRAY on line help

Adjustment Possibilities:

The GTX features fully-adjustable front part and straight back suspension system geometry. For fast & effortless modification, we recommend using set-up tools and add-ons from HUDY, the whole planet leader of RC tools.

The considerable and impressive selection of adjustment opportunities includes:

• Caster
• Camber
• Toe
• Kick-up
• Anti-dive
• Anti-squat
• Ride height
• Downstops
• Track-width
• Roll centers
• Bump steer
• Wheelbase
• Ackermann
• Adjustable shocks
• Adjustable front & back diffs

All needs are at the mercy of change without previous notice. Pre-production model is shown, last demands may slightly differ. In certain pictures optional components could be shown. All choice parts are not included and must be bought separately. And of some aluminum elements can vary greatly from kit to kit and some from the kits might not include a lot of the orange or black colored components as shown. Some of the free components or choice elements may possibly not be offered at the moment in orange or black colored colored color as shown. The racing human body can be obtained just as a choice and it's also not contained in the package.
