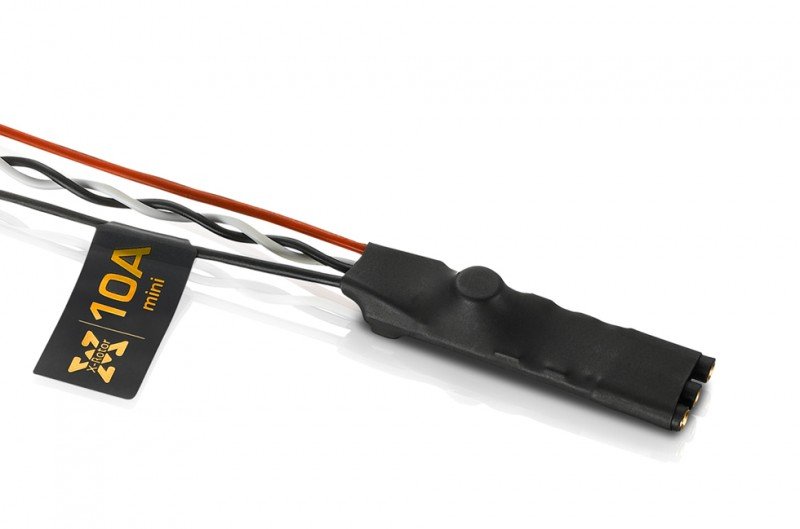

HOBBYWING XRotor 10A Mini - 30901008  [HW-30901008]

Rapid Throttle Response

Dedicated system for multi-rotor ESCs,
which is much better than various open-source programs,
greatly improves throttle response.

Super easy to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making use simple, very smart and adaptive.

Less alert Interference

The twisted-pair throttle signal cable effortlessly decreases
disruption produced in alert transmission and makes journey
more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs used by this XRotor 10A mini ESC
make interior opposition low but present stamina high.

Small and Compact Design

With smaller size than regular 10A ESCs,
XRotor 10A mini ESCs completely match different QAVs and stay
the initial choice for many players.

Super high Throttle Signal

Compatible with different flight-control systems and helps a throttle
sign regularity all the way to 621Hz.

Product Specification

Specifications

• Cont./Peak Present : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-20AWG-100mm*1/Black-20AWG-100mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : 2.0mm silver Connectors (Female)

Features

• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 44.2x12.2x9.2mm
• Weight : 7g
