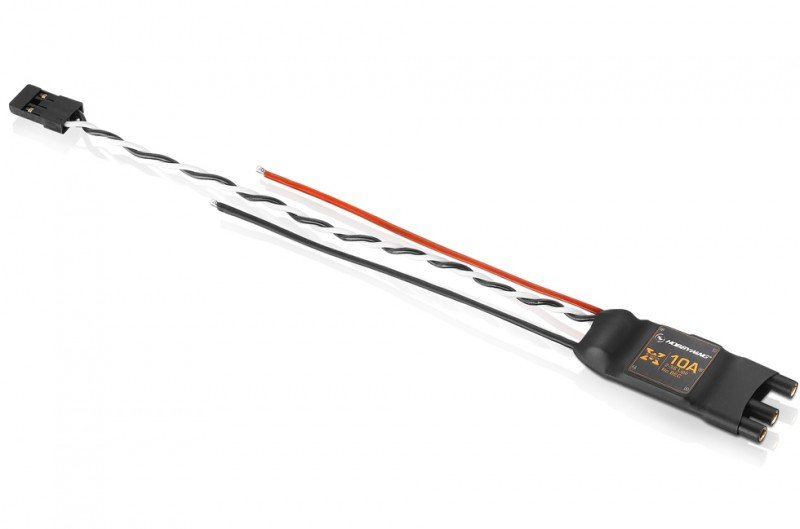

HOBBYWING XRotor 10A(International Version B) - 30901003  [HW-30901003]

Rapid Throttle Response

Dedicated program for multi-rotor ESCs, that is much better than various
open-source programs, significantly improves throttle response.

Simple to Use

All settings except the "Timing (adjustable between High and Intermediate)"
are preset, making use simple, highly smart and adaptive.

Less alert Interference

The twisted-pair throttle indication cable effectively decreases interference produced
in signal transmission and makes trip more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs used by this XRotor 10A ESC make
interior resistance low but present endurance high.

Super tall Throttle Signal

Compatible with different flight-control systems and supports a
throttle sign frequency since high as 621Hz.

Specifications

• Cont./Peak active : 10A/15A
• LiPo Cells : 2-3S LiPo
• BEC production : No

Wires & Connectors

• Output cables : No
• Input Connectors : No
• Output Connectors : 2.0mm silver Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : perhaps not Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 44.0x16.7x8.2mm
• Weight : 8g

Applications

• 250 Class Multirotors
