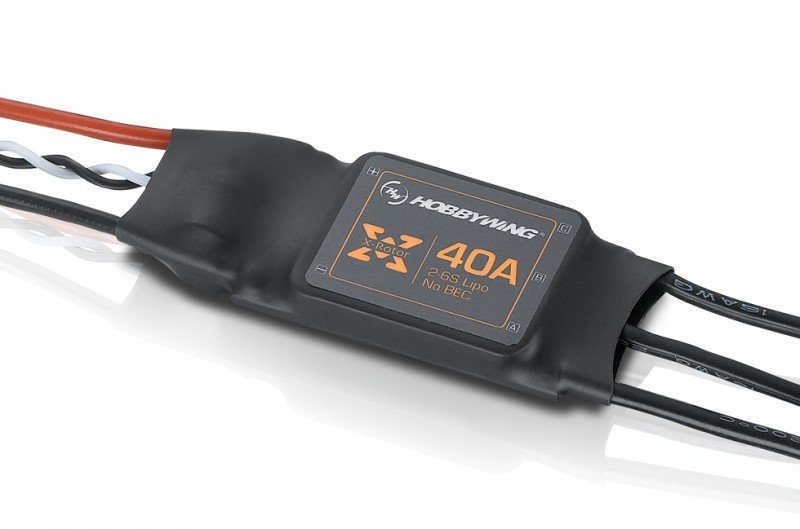

HOBBYWING XRotor 40A(Asian Version A) - 30901014  [HW-30901014]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, that will be much better than different
open-source programs, notably improves throttle reaction.

An easy task to Use

All settings except the "Timing (adjustable between high and Intermediate)"
are preset, making use simple, excessively intelligent and adaptive.

Less alert Interference

The twisted-pair throttle signal cable effectively decreases disturbance produced
in signal transmission and makes journey more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs utilized by this XRotor 40A ESC make
interior resistance low but current stamina high.

Super High Throttle Signal

Compatible with various flight-control systems and aids a
throttle sign regularity as high as 621Hz.

Specifications

• Cont./Peak active : 40A/60A
• LiPo Cells : 2-6S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : not Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : not Supported
• Motor Rotation : not Supported

Size & Weight

• Size : 56.0x25.2x12.4mm
• Weight : 32g

Applications

• 550/650 Class Multirotors
