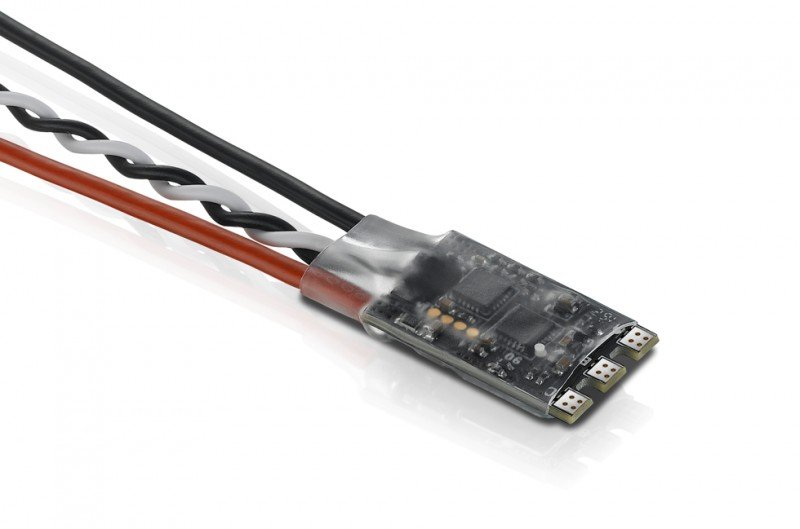

HOBBYWING XRotor micro 20A BLHeli - 30901066  [HW-30901066]

Super Small & Light

ESCs with extremely small size and lightweight are
particularly made for competition FPV drones.

Quality Components

The use of F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 levels of PCBs and other
quality components guarantees less heat, higher effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the signal cable (on ESCs), and system 4 ESCs on top of that after
connecting their journey controller toward BLHeliSuite computer software if the flight controller makes use of the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey some time heat
dissipation. The ESCs assist OneShot125 high rate throttle
sign and regular throttle signal (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle sign cable effectively decreases disruption manufactured in alert
transmission and makes the trip much more stable and dependable.

Specifications

• Cont./Peak active : 20A/30A
• LiPo Cells : 2-4S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : perhaps not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
