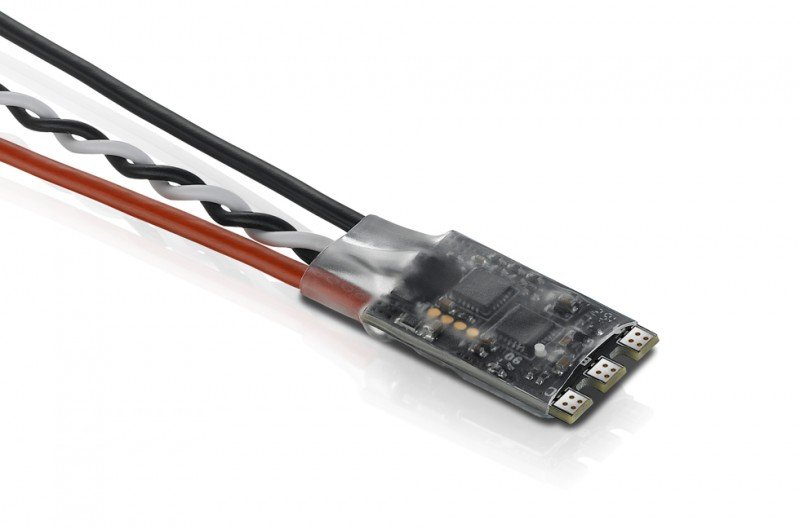

HOBBYWING XRotor micro 30A BLHeli - 30901071  [HW-30901071]

Super Small & Light

ESCs with extremely little size and light-weight are
particularly created for competition FPV drones.

Quality Components

The utilization of F396 48MHz MCU, earned MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 levels of PCBs along with other
quality components guarantees less temperature, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and system 4 ESCs as well after
linking their journey controller towards the BLHeliSuite computer programs in the event that journey controller utilizes the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, trip some time temperature
dissipation. The ESCs help OneShot125 high rate throttle
signal and regular throttle indication (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle signal cable effortlessly decreases disturbance stated in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 30A/40A
• LiPo Cells : 2-4S LiPo
• BEC Output : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : maybe not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
