High Performance Hardware &
Original Third-generation BLHeli_32 Firmware
The use of superior 32-bit ARM microprocessor (which runs at 48MHz),
introduced top quality MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 degrees of PCBs, together with third-generation BLHeli (BLHeli_32 firmware)
creates an ESC with an increase of functions & better performance particularly for FPV drones.
Hardware Generated PWM & Damped Light Mode
The ESC firmware uses gear produced motor PWM for smooth throttle reaction and quiet
procedure. Damped light does regenerative breaking, causing quickly motor retardation, and yes it
inherently also does active freewheeling.
Numerous Programmable Items
The initial BLHeli_32 firmware enables users to get in contact four
ESCs toward FC flashed along with the Cleanflight/Betaflight
firmware via sign cables (within the ESCs) setting fundamental
parameters connected with ESCs simultaneously, upgrade the firmware
or adjust higher level parameters on the web besides.
Multiple Protections
Multiple protection functions like engine
lock-up security, heat security,
low RPM energy security, low-voltage
protection and current protection efficiently
prolong the service life regarding the ESC.

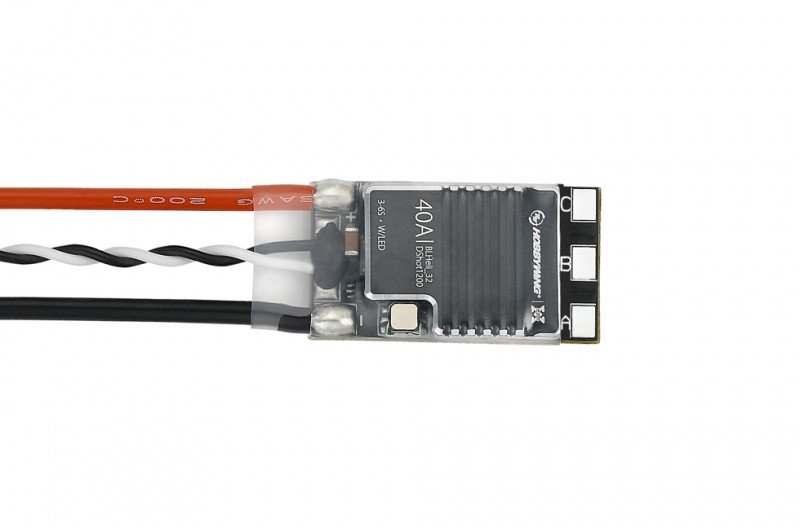

Light-emitting Diode Indicator (just the XRotor 40A
BLHeli_32 has it) & Beacon Functionality
The light color connected with Light-emitting Diode indicator into the ESC is adjustable.
The Beacon functionality, that may drive the engine to beep in case throttle sign has
been zero for certain time, effectively helps finding lost crafts.
Specifications
- Cont./Peak active : 30A / 50A
- LiPo Cells : 2-5S Lipo
- BEC manufacturing : No
Wires & Connectors
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli_32
- ESC Programming : Supported
- Stick Programming : BLHeliSuite
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 23.8x14.5x5.8mm
- Weight : 6g
