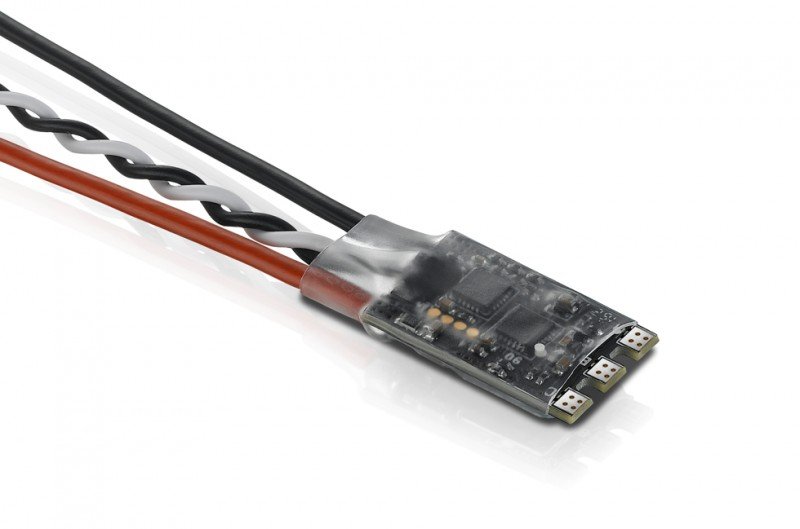

HOBBYWING XRotor micro 35A BLHeli - 30901070  [HW-30901070]

Super Small & Light

ESCs with extremely small size and lightweight are
specifically created for competition FPV drones.

Quality Components

The utilization of F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs alongside
quality elements guarantees less heat, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the sign cable (on ESCs), and system 4 ESCs simultaneously after
connecting their trip controller on BLHeliSuite computer software in the event that trip controller uses the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and enables
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, flight some time heat
dissipation. The ESCs support OneShot125 high rate throttle
sign and regular throttle indication (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle signal cable effectively decreases disturbance manufactured in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 35A/50A
• LiPo Cells : 3-6S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light Color : not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 36.5x16.7x5.5mm
• Weight : 10g

Applications

• FPVs with 150-330mm Diagonal Wheelbase
