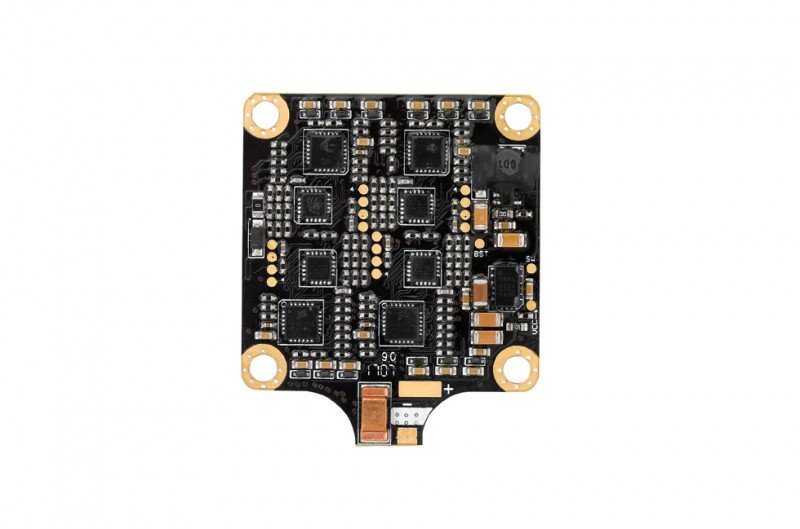

Exceptionally included & Compact
The 4-in-1 ESC not only includes 4 superior 40A ESCs, 1 integral BEC,
but additionally an Amp/Volt monitoring slot allowing FC observe the volt & amp
immediately (on condition your FC supports this function); it’s no more than a
FC for FPV(s) and simple for installation and wiring. Using the remarkably tiny
size, it's outstanding match for competition FPV(s).
Top-notch Components
The usage of EMF8BB21F16G MCUs using the running regularity as high as
48MHz, brought in top quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 layers of PCBs guarantees less heat,
higher effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
utilizes the initial BLHeli-S firmware and supports adjusting
parameters or updating firmware via various practices
(easily put. via throttle signal cable with making use of other development
board or a FC flashed with all the cleanfight/betaflight firmware).
DShot150/300/600 Ready
Besides the conventional PWM mode,
Oneshot125/Oneshot42/Multishot modes, the newest
DShot150/300/600 modes may also be supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and quick response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware uses hardware produced engine pwm for smooth
throttle response and silent operation. Damped light does regenerative
breaking, causing very fast motor retardation, therefore inherently furthermore
does active freewheeling.
Specifications
- Cont./Peak active : 40Ax4/50Ax4
- Input Voltage : 2-5S Lipo
- BEC output : 5V & 1.5A
Wires & Connectors
- Input cables : Red-14AWG-130mm / Black-14AWG-130mm
- Output Wires : No wires but solder tabs
- Input Connectors : XT60 (w/ cables Soldered on)
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 42.6x36x4mm
- Weight : 10g
