Effective Hardware &
Original Third-generation BLHeli_32 Firmware
The usage of high-performance 32-bit ARM microprocessor (which operates at 48MHz),
brought in top quality MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 layers of PCBs, in addition to the third-generation BLHeli (BLHeli_32 firmware)
creates an ESC with additional functions & better performance especially for FPV drones.
Hardware Generated PWM & Damped Light Mode
The ESC firmware makes use of equipment generated motor PWM for smooth throttle response and quiet
operation. Damped light does regenerative breaking, causing quickly motor retardation, and it
inherently also does active freewheeling.
Multiple Programmable Items
The initial BLHeli_32 firmware permits users in order to connect four
ESCs towards FC flashed with all the Cleanflight/Betaflight
firmware via indication cables (regarding the ESCs) establishing fundamental
parameters of ESCs at exactly the same time, upgrade the firmware
or adjust advanced level parameters online at precisely the same time.
Multiple Protections
Multiple safety functions like engine
lock-up security, heat safety,
low RPM energy security, low-voltage
safety and present protection effortlessly
prolong the solution life connected with ESC.

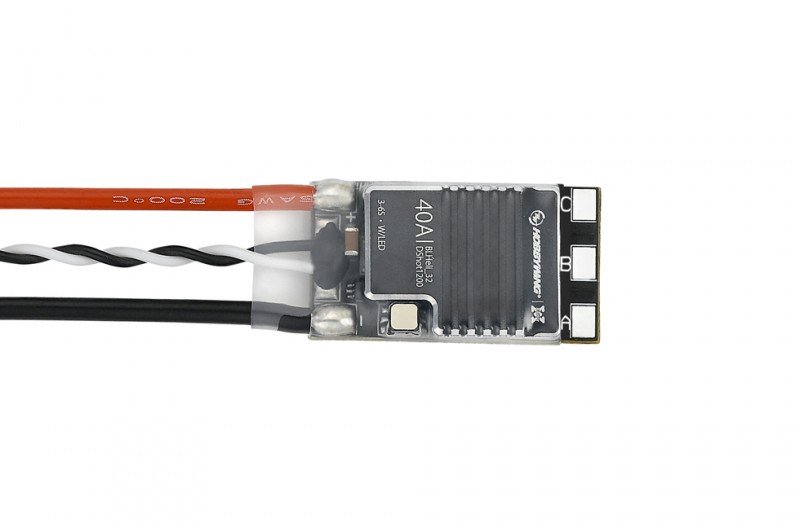

Light-emitting Diode Indicator (only the XRotor 40A
BLHeli_32 has it) & Beacon Functionality
The light color connected with LED indicator on ESC is adjustable.
The Beacon functionality, which will drive the engine to beep if the throttle sign has
been zero for certain time, efficiently helps finding lost crafts.
Specifications
- Cont./Peak Current : 40A / 60A
- LiPo Cells : 3-6S Lipo
- BEC manufacturing : No
Wires & Connectors
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli_32
- ESC Programming : Supported
- Stick Programming : BLHeliSuite
- DEO : Supported
- Throttle quantity Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32.7x18.4x6.2mm
- Weight : 11.5g
