Dshot 150/300/600, Oneshot125,
Oneshot42, Multishot Modes Supported
Besides the most recent Dshot 150/300/600 mode, the ESC also supports
regular PWM (1000µs -2000µs) mode, Oneshot125 (125-250µs) mode,
Oneshot42 (42-81µs) mode and Multishot (2-25µs) mode.

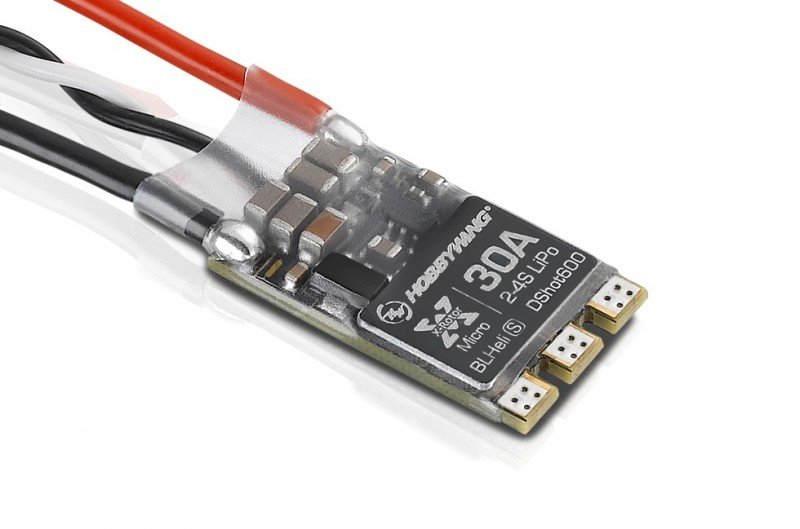

Super Small & Light
With the remarkably little size (23.8x14.5x5.8mm) and lightweight (6g),
XRotor Micro BLHeli-s 30A DShot600 is an ESC particularly designed for competition FPV drone(s).
Quality Components
The using EMF8BB21F16G MCU (due to the operating regularity of up to 48MHz),
united states of america Fairchild MOSFETs, introduced 3-in-1 drive IC and quality ceramic
capacitors, 3-ounce copper and 4 levels of PCBs guarantees less temperature, greater
effectiveness and rapider response.
BLHeli-S Firmware Ready
The ESC supports initial BLHeli-S firmware. Users can flash or upgrade the firmware through
indication cable (on ESC) and plan 4 ESCs in addition after connecting their journey controller to the
BLHeliSuite pc software (in case journey controller uses the CleanFlight or betaflight firmware).
Hardware Generated PWM & Damped Light Mode
The ESC firmware employs hardware produced engine pwm for smooth throttle response and
quiet procedure. Damped light does regenerative braking, causing extremely fast motor retardation,
also it inherently also does active freewheeling.
Twisted-Pair Signal Cable Reduces Interference
The twisted-pair throttle signal cable efficiently reduces disturbance produced in alert
transmission and makes the journey far more stable and dependable.
Specifications
- Cont./Peak Current : 30A/40A
- Input Voltage : 2-4S LiPo
- BEC output : No
Wires & Connectors
- Input Wires : Red-18AWG-100mm*1 / Black-18AWG-100mm*1
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle Range Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 23.8x14.5x5.8mm
- Weight : 6g
