Extremely built-in & Compact

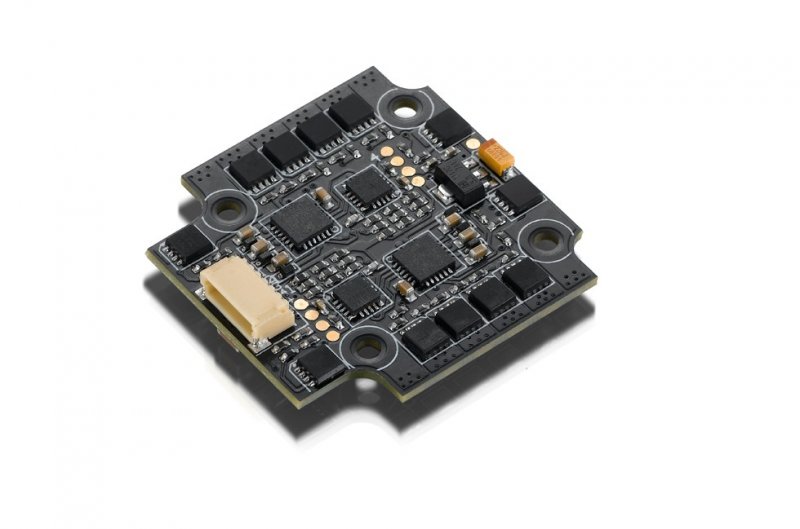

The XRotor Nano 20A 4in1 BLHeli-S DShot600 not only includes 4
superior 20A ESCs, and a volt monitoring slot allows for FC to
monitor the voltage immediately (on condition your FC supports this function).
Because of the exceptionally tiny size, the installation and wiring could be very easy
and simple whenever combining it due to the Hobbywing XRotor Nano Flight Controller.
It’s an ESC specially designed for super mini-sized interior FPV(s).
Top-notch Components
The utilization of EMF8BB21F16G MCUs with the operating regularity all the way to
48MHz, introduced high-quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 levels of PCBs guarantees less temperature,
greater effectiveness and rapider reaction.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
makes use of the first BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various techniques
(i.e. via throttle signal wire with using other development board
or a FC flashed due to the Cleanfight / Betaflight firmware).
DShot150/300/600 Ready
Besides the regular PWM mode,
Oneshot125/Oneshot42/Multishot modes, the most recent
DShot150/300/600 modes may supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware utilizes gear created motor pwm for smooth
throttle response and peaceful procedure. Damped light does regenerative
breaking, causing very quickly motor retardation, and it inherently additionally
does active freewheeling.
Specifications
- Cont./Peak active : 20Ax4/ 30Ax4
- Input Voltage : 2-4S Lipo
- BEC output : No
Wires & Connectors
- Input cables : Red-16AWG-85mm/ Black-16AWG-85mm
- Output Wires : No cables but solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle number Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 32x31.9x5.8mm
- Weight : 6g
