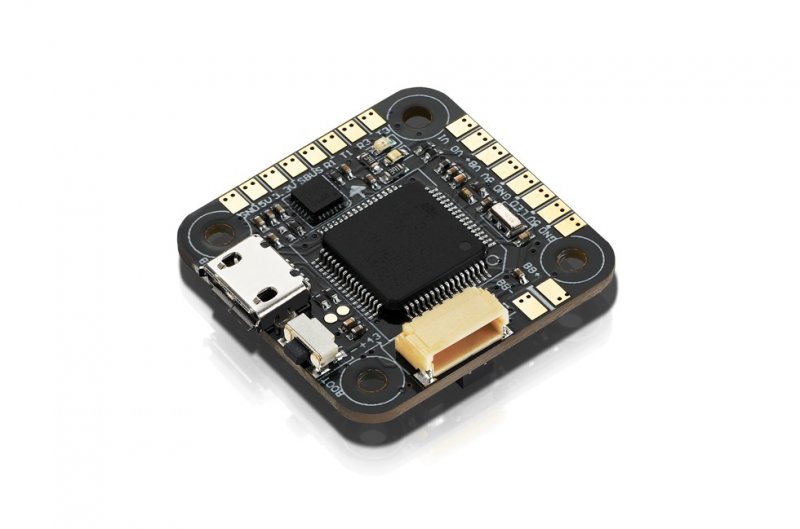

HOBBYWING XRotor Nano F4 Flight Controller - 31001001  [HW-31001001]

Small(er) Size

With the severely small size, maybe it's installed on the
more mini-sized airframe (i.e. 130mm or below) plus
features most of the functions that regular FC for FPV(s) has.

DShot 150/300/600/1200
Modes Supported

Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes,
the newest DShot150/300/600 modes are
also supported.

Very fast working Speed

The STM32F405 MCU which features the effective
computing capability and very fast operating rate can
offer the PID controller with greater cyclic regularity &
the gyro with higher refresh rate.

Built-in BEC & OSD

The integrated BEC (5V/1.5A) provides
energy for different electronic devices;
the inner OSD allows users to adjust
or set all OSD parameters through the
Betaflight/Cleanflight computer programs effortlessly.

Betaflight/Cleanflight Firmware Supported

The flight controller supports the Betaflight/Cleanflight firmware and enables users
to modify or set different parameters via the Betaflight/Cleanflight software effortlessly.
It’s more appropriate toward FPV flight & racing.

Appropriate for Hobbywing XRotor Nano 4in1 ESC

When combining the Nano Flight Controller F4 with all the Hobbywing XRotor Nano 4in1 ESC,
the wiring & installation can be extremely quick and simple.

Product Specification

Basic Features

• Compatible with (Multirotors) : hexacopters
• Multi-rotor Type : Quadcopters
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,
  Dshot600, Dshot1200, Proshot1000
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• BEC : 5V @ 1.5A
• USB Port : MicroUSB

Size & Weight

• Size : 27x27mm
• Weight : 3.3g
