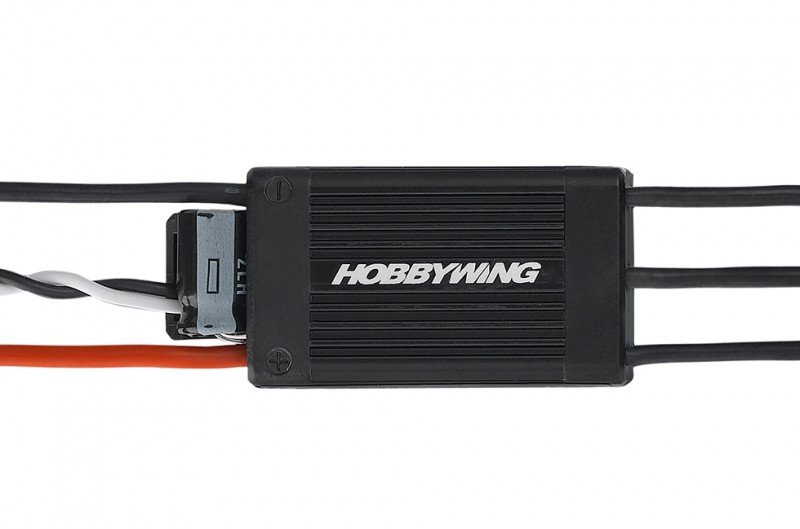

HOBBYWING XRotor PRO 25A 3D - 30902021  [HW-30902021]

3D Flight

China's 1st multi-rotor controller with 3D-flight function. It could replace the motor rotation
rapidly which enable pilots to perform complete 3D journey.

DEO Technology

The DEO (Driving effectiveness Optimization) technology applied inside ESC has numerous
benefits:
● Active braking. When reducing the throttle amount, the motor will decelerate quickly.
This kind of function allows pilots to faster perform all maneuvers like sharp turns, altitude
customizations, and sudden braking.
● greater driving effectiveness, much longer journey time.
● Lower ESC heat and a reliable operation .
* various businesses call this technology by different names; “SimonK” calls it “Comp_PWM”,
“BLHeli” calls it “Dampaning-light” and Kontronik calls it “Active Freewheeling”.

An easy task to Use

Highly intelligent and adaptive standard settings like car timing for effortless procedure.
Quicker Temperature

Less alert Interference

The twisted-pair throttle indication cable effectively reduces
disturbance stated in alert transmission and makes journey
more stable and dependable.

Product Specification

Specifications

• Cont./Peak Present : 25A/40A
• LiPo Cells : 3-4S LiPo
• BEC production : No

Wires & Connectors

• Input cables : Red-18AWG-150mm*1/Black-18AWG-150mm*1
• Output cables : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)

Features

• Throttle quantity Calibration : not Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : not Supported

Size & Weight

• Size : 46.6x22.2x10.5mm
• Weight : 25g
