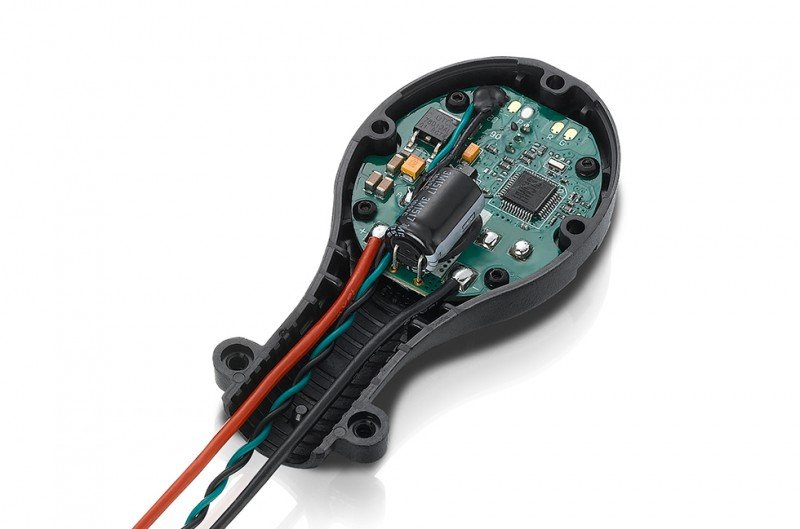

HOBBYWING XRotor PRO 25A Circular (Black Color)- 30902022  [HW-30902022]

Effortless Installation

Motor could possibly be closely mounted on the ESC, which somewhat simplifies wiring and
installing the propulsion system.

Popular Choice

The mount is excellently suitable for typically the most popular 16mm
(outer diameter) carbon fibre supply pipe.

Excellent Protection

The included framework for the ESC and engine mount has
excellent dustproof and splash proof protection.

DEO Technology

The DEO (Driving effectiveness Optimization) technology implemented
into the ESC has numerous benefits:
● Active braking. Whenever reducing the throttle amount, the engine will
decelerate quickly. This function allows pilots to easier
perform all maneuvers like razor-sharp turns, altitude modifications, and
unforeseen braking.
● greater driving effectiveness, longer trip time.
● Lower ESC heat and an even more dependable procedure .
* different businesses call this technology by various names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

An easy task to Use

Highly intelligent and adaptive standard settings like
auto-adjusting timing for easy operation.

Product Specification

Product Number

Specifications

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : No

Features

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Motor Mount)
