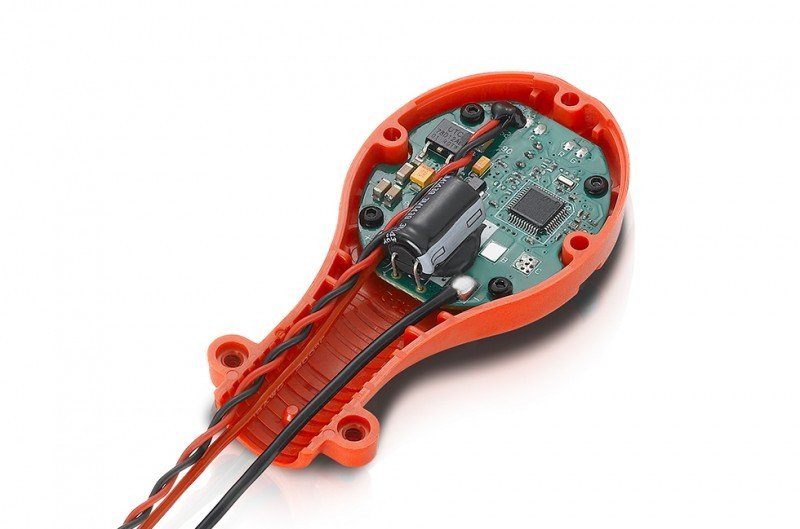

HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023  [HW-30902023]

Simple Installation

Motor can be closely installed onto the ESC, which significantly simplifies wiring and
installing of the propulsion system.

Popular Choice

The mount is excellently suited to the most popular 16mm
(outer diameter) carbon soluble fiber supply pipeline.

Exceptional Protection

The included framework from the ESC and motor mount has
exemplary dustproof and splash proof security.

DEO Technology

The DEO (Driving effectiveness Optimization) technology implemented
inside the ESC has many benefits:
● Active braking. When reducing the throttle amount, the motor will
decelerate quickly. This feature enables pilots to faster
perform all maneuvers like razor-sharp turns, altitude changes, and
unanticipated braking.
● Higher driving effectiveness, longer trip time.
● Lower ESC temperature and an even more dependable procedure .
* various businesses call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Simple to Use

Highly smart and adaptive default settings like
auto-adjusting timing for easy procedure.

Item Specification

Product Number

Specifications

• Cont./Peak Present : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC production : No

Wires & Connectors

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : No

Features

• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 89.3x44.5x20.9mm
• Weight : 50.5g(w/ Motor Mount)
