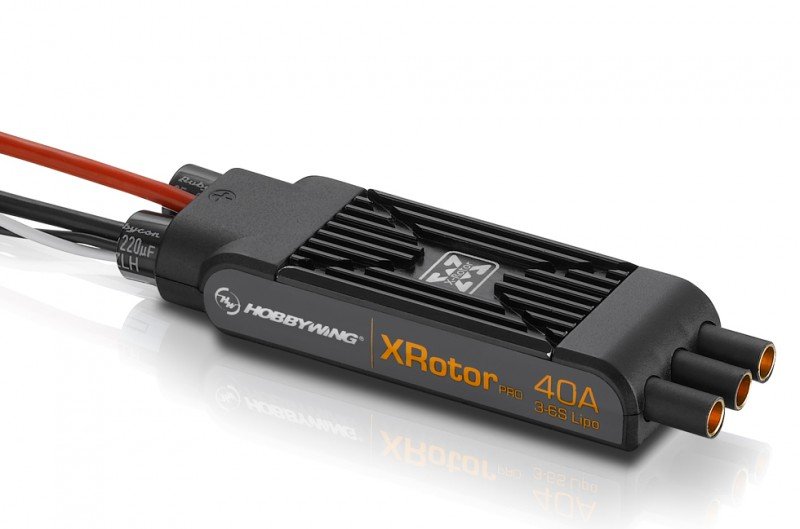

HOBBYWING XRotor Pro 40A (Version B) - 30902041  [HW-30902041]

Newly Designed Shape

A completely new structural design that is enclosed within an
exquisite solid plastic instance that provides the all-round protection
and safety for the ESC. The newly designed ESC
can be simply placed into a carbon-fiber pipe utilising the I. D. of 23mm.

Vehicle Timing modification & Preset Parameters for Highly
smart Operation

Auto timing adjustment and preset parameters
relevant to numerous applications exceptionally
simplify operation and optimize consumer experience.

Original Core Program for fast Throttle
Response

The multi-rotor has made the requirement over ESC response become even harsher than typical.
Our newly unique core system for fast throttle effect price means a much more stable hover and
fast motion during journey. With the XRotor 3D and professional series ESC’s new fast reaction price,
the ESC can handle hard and completely new challenges calm.

Driving effectiveness Optimization(DEO)
technology for Better Performance

Driving effectiveness Optimization (DEO) Technology is adopted for a higher driving effectiveness

Open Cooling Fin

A high-performance aluminum folded fin temperature sink is combined
aided by the especially created heat-conductive slotted framework that
brings exemplary heat-dissipating impact. This is a really
Simplified Operational Procedure.

Specifications

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle quantity Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : maybe not Supported
• Motor Rotation : perhaps not Supported

Size & Weight

• Size : 73.5x21.8x11.0mm
• Weight : 45g

Applications

• 550 Class Multirotors
