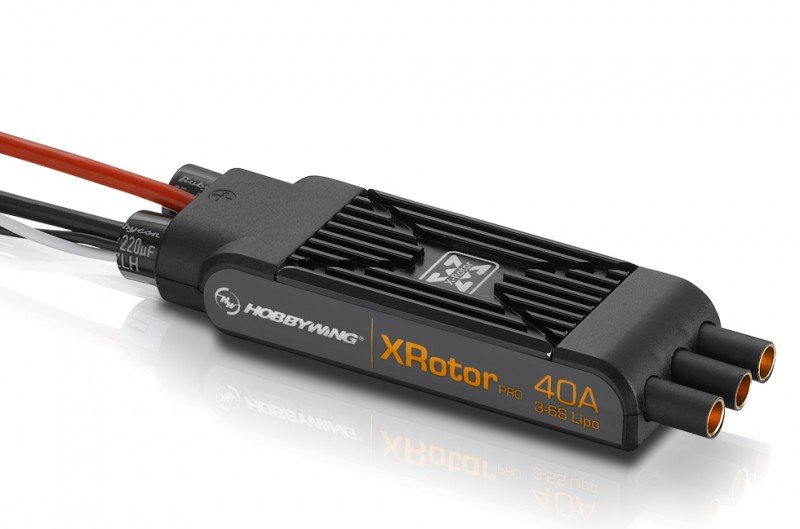

HOBBYWING XRotor Pro 40A (Version A) - 30902042  [HW-30902042]

Newly Designed Shape

A unique structural design that's enclosed within an
exquisite solid artificial instance that provides the all-round security
and protection the ESC. The newly designed ESC
can be simply placed into a carbon-fiber pipe utilising the I. D. of 23mm.

Automobile Timing modification & Preset Parameters for Highly
smart Operation

Auto timing adjustment and preset parameters
applicable to most applications excessively
simplify operation and optimize consumer experience.

Unique Core Program for fast Throttle
Response

The multi-rotor has made the demand over ESC reaction become even harsher than typical.
Our newly unique core program for fast throttle response price means a more stable hover and
swift movement during journey. Aided by the XRotor 3D and professional show ESC’s groundbreaking fast response rate,
the ESC were created for hard and fresh challenges comfortable.

Driving effectiveness Optimization(DEO)
Technology for Better Performance

Driving effectiveness Optimization (DEO) Technology is adopted for a heightened driving efficiency

Open Cooling Fin

A high-performance aluminum folded fin temperature sink is combined
using the specially produced heat-conductive slotted framework that
brings excellent heat-dissipating effect. This will be an exceptionally
Simplified Operational Procedure.

Specifications

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output cables : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 66.0x21.8x11.0mm
• Weight : 50g

Applications

• 550 Course Multirotors
