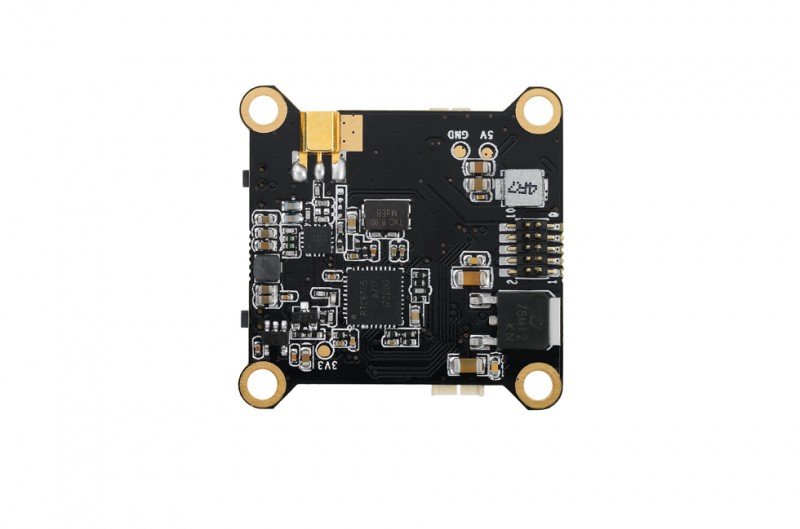

HOBBYWING XRotor Video Transmitter - 30505000  [HW-30505000]

Tiny Size & Exquisite Design

The STM32F405 MCU which features the effective computing ability and super-high
working frequency enables the FC to perform the PID and gyro with greater regularity.

Voltage-regulating Filter,
Adjustable Transmitting energy &
Adjustable Voltage for Camera

The incorporated voltage-regulating filter isolates the disruption
for the energy system through VTX to ensure the image stays
clear and stable when the aircraft flies at higher rate. The
adjustable transmitting energy (0/25mW/200mW) and
stable manufacturing energy guarantee long transmission distance.
For different applications, the supply voltage the camera
is adjustable between 5V and 12V.

48 Adjustable Frequencies & Race Bands Supported

The 6 regularity teams with 8 networks in each group form 48 frequencies; the frequency circulation is
relevant to a lot of obtaining gear. One of several regularity teams, team D and team F are
regularity groups for competition; users may use the 8 frequencies in identical team at the same time
without worrying all about interference.

Stack-up Installation Supported

When combining the VTX because of the Hobbywing F4 flight controller
and XRotor Micro 40A 4-in-1 ESC, the installation is very
incorporated, easy and simple convenient, and makes the aircraft
more relevant towards FPV Racing.

Item Specification

Part No.

• 30505000

Basic Features

• Input Voltage : 7-25V
• Current : 70mA / 100mA / 250mW @ 12V
• Output Voltage : 5V/12V Adjustable (restricted to powering the webcam)
• Transmitting energy : 0/25mW/200mW Adjustable
• Transmitting Frequency Range : 5.3GHz-5.9GHz
• Transmitting Frequencies : 48 Frequencies Adjustable
• Antenna Connector Type : MMCX-to-SMA (a MMCX-to-SMA cable is roofed in box)

Size & Weight

• Size : 36x36mm
• Mounting Holes : 30.5x30.5mm
• Weight : 5g
